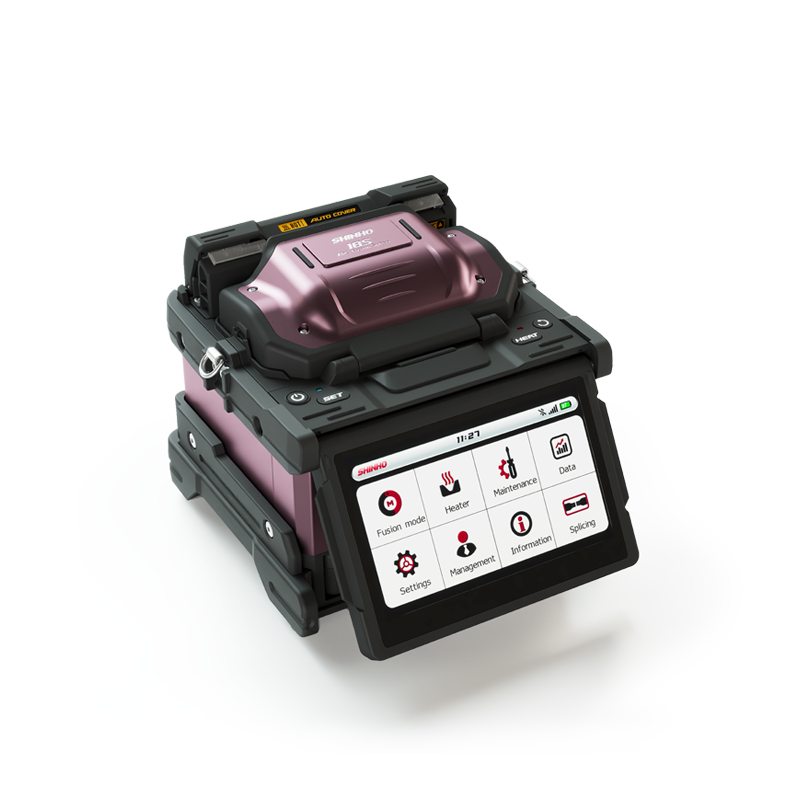

18S Series
SHINHO
Product Description
、

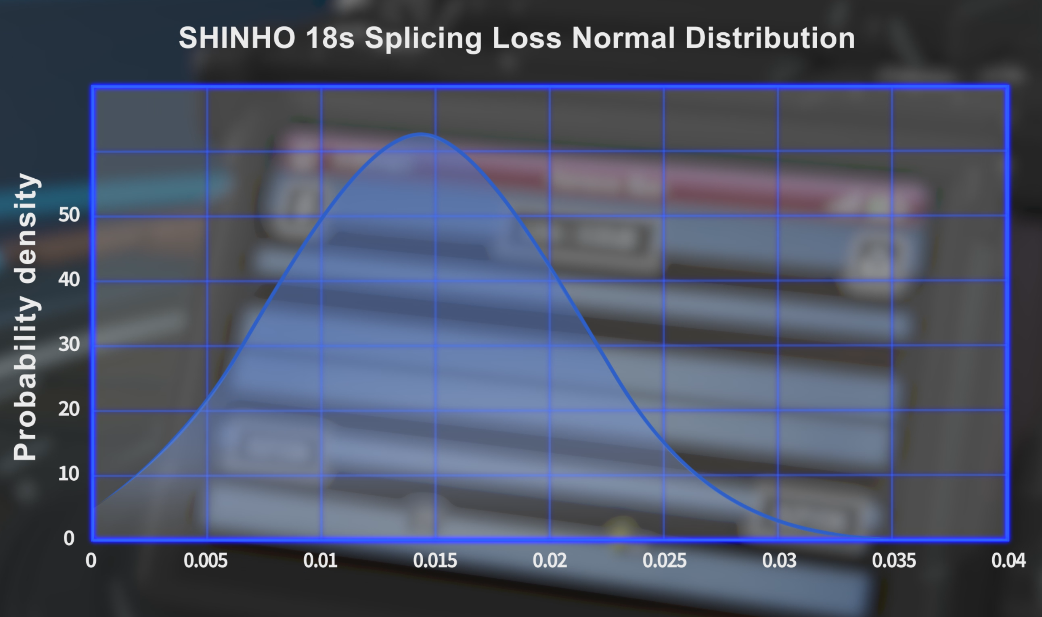

Actual Measured 200 Core Probability Density Chart
MORE INFO

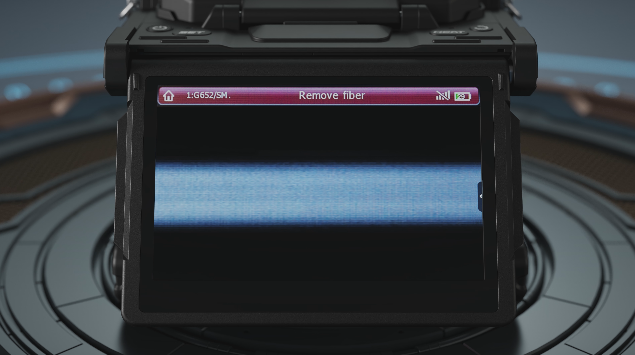

Nanoscale alignment,
800x magnification

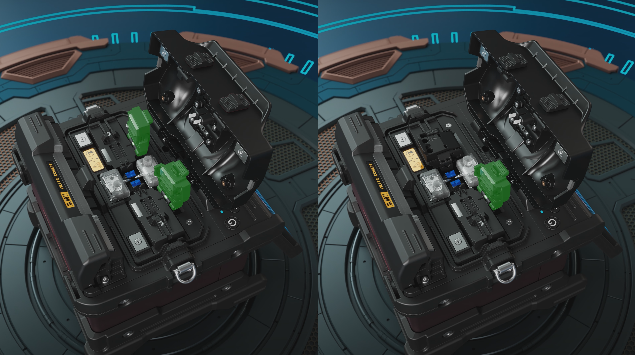

Windproof cover & clamps
interlocked opening design

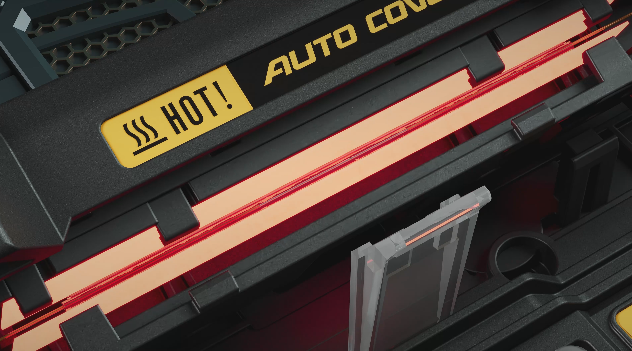

Auto open & close heater, fast heating, time saving

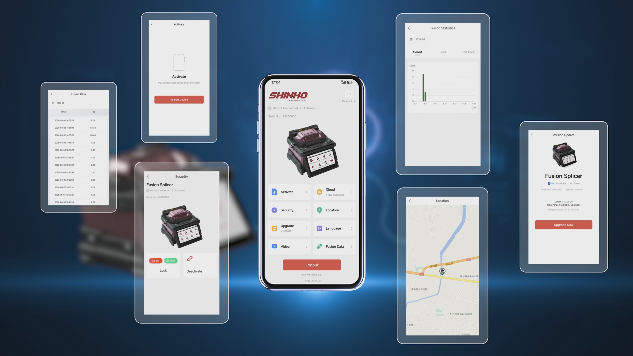

Device & data management
in smart SHINHO APP
Multi-Language Sites
Operating Condition
SPECIFICATIONS
| Model Item | 18S | 18S Pro |
|---|---|---|
| Alignment Method | Active cladding alignment | Core to core alignment |
| Splicing Time | 4s (Fast mode); 6～7s (Standard mode) | 4s (Fast mode); 6～7s (Standard mode),7～9s (Auto mode) |
| Applicable Fiber | SM, MM, DS, NZDS, BIF etc. | |
| Cladding Diameter | 80～150µm | |
| Coating Diameter | 160～3000µm | |
| Typical Splice Loss | SM: 0.02dB; MM: 0.01dB; DS: 0.04dB; NZDS: 0.04dB; BIF:0.02dB | |
| Return Loss | >60 dB | |
| Cleaved Length | 10～16mm ( coating dia.<250µm); 16mm (coating dia. 250～1000µm） | |
| Splicing Program | 100 modes | |
| Operation Mode | Manual, Auto | |
| Heating Time | 8～26s (for 60 mm heat shrink sleeve) | |
| Heating Program | 40 modes | |
| Applicable Sleeves | 20 mm, 40 mm, 60 mm etc. | |
| Fiber Magnification | 128x for XY vertical dual view, 256x for X/Y single view & XY horizontal dual view. With maximum magnification up to 512x & 800x | |
| Display | Dual high sensitivity cameras, 5.0-inch high definition color LCD display | |
| Results Storage | 500,000 splice data & 35,000 splice images (8GB SD card included) | |
| Estimated Splice Loss | Available | |
| Tension Test | 1.96N | |
| Interface | GUI menu interface, touch screen & button dual operation | |
| Wireless Comm. | Bluetooth 5.0 LE, IoT module (optional) | |
| Battery Capacity | Detachable 6800mAh battery, max up to 550 splice & heating cycles | |
| Power Supply | External adapter, input: AC100～240V(50/60Hz), output: DC13.5V | |
| Electrode Life | More than 5000 ARC discharges | |
| Terminal | USB 2.0 port, for software upgrading, records exporting | |
| Operating Condition | Altitude: 0~5000m; Humidity: 0~95%; Temperature: -10°C~+50°C; Max wind: 15m/s | |
| Dimension | 153mm (L)×153mm (W)×135mm (H) (including rubber bumper) | |
| Weight | 1.82kg (with battery) | 2.05kg (with battery) |
PACKAGE
| Item | Quantity | Item | Quantity |
|---|---|---|---|
| 18S Arc Fusion Splicer | 1pc | 18S Pro Arc Fusion Splicer | 1pc |
| SC-10 Fiber Cleaver | 1pc | SC-10A Fiber Cleaver | 1pc |
| Fiber Stripper | 1pc | Fiber Stripper | 1pc |
| Spare Electrodes | 1pair | Spare Electrodes | 1pair |
| User Manual( USB Drive) | 1pc | User Manual( USB Drive) | 1pc |
| Cleaning Brush | 1pc | Cleaning Brush | 1pc |
| Strap | 1pc | Strap | 1pc |
| Power Adapter | 1pc | Power Adapter | 1pc |
| Power Cord | 1pc | Power Cord | 1pc |
| Cooling Tray | 1pc | Cooling Tray | 1pc |
| Inspection Report | 1pc | Inspection Report | 1pc |
| X-40E Carrying Case | 1pc | X-40E Carrying Case | 1pc |
FAQ
1. Why Choose SHINHO?
----SHINHO is founded in 2012 by a team of engineers with 20 year's experience in this industry. We focus on the manufacturing of fusion splicer and the quality since beginning.The software and hardware are all designed and implemented at our own plant. We have professional production line and staff who are making nice quality in short time.
2. What Certificate you have?
-----CE,Rohs, and ISO.
3. What is the warranty?
----- 3 Years from the date from you received the splicer.
4.Is there any discount for the splicer?
-----Yes, the price depends on the quantity, please contact us for details.
5. What should I do if I have a problem with the machine?
-----When you have problem, please share video or photo to us, we will guide you how to solve the problem. Usually most problem could be solved via remote guidance or software upgrading. We are experienced in this.
6. How to be your distributor?
-----We welcome customers to be our distributor. We will give you full support. Contact us if you are interested.

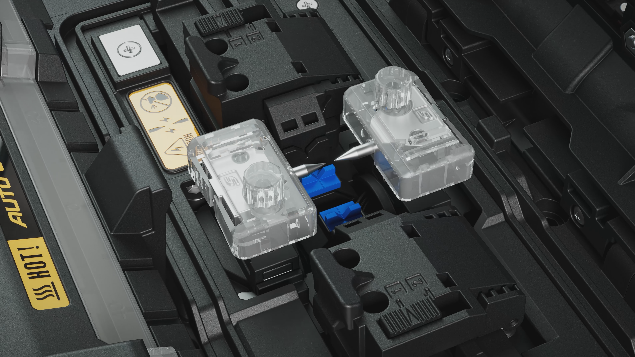

Tool-free electrode easy replacement

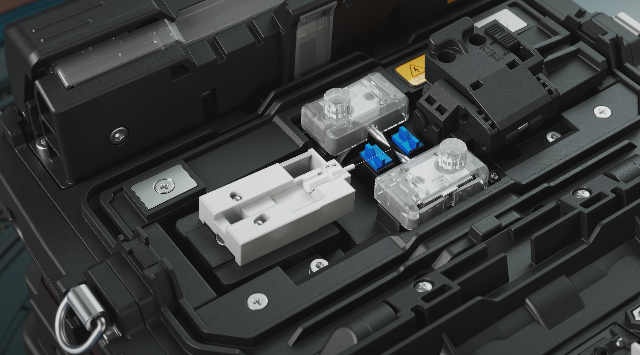

Compatible with SOC & removable fiber holders
