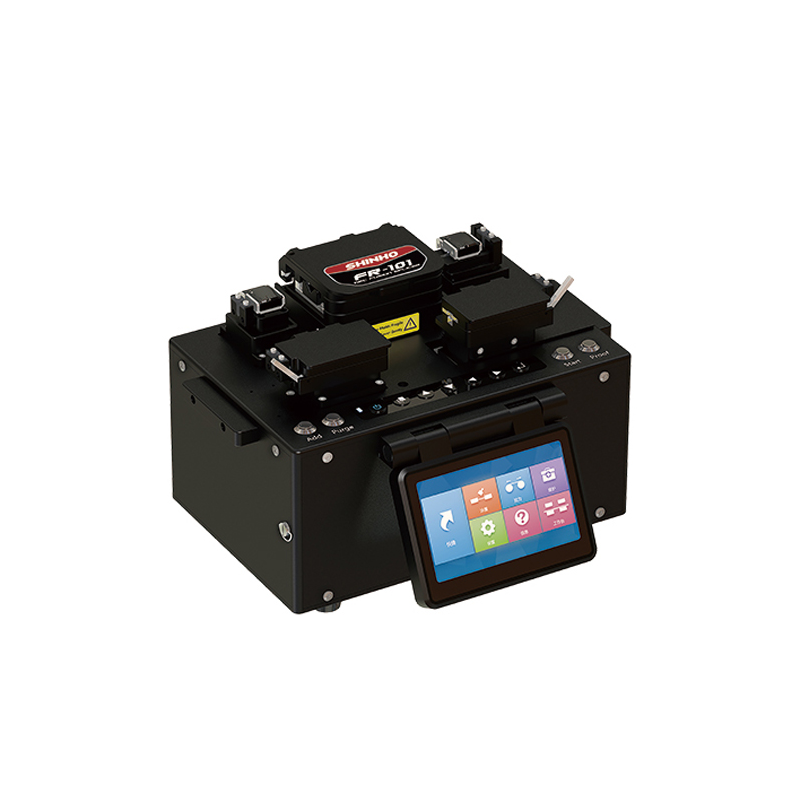

FR-101
SHINHO
Product Description
Specially Designed For FR-100 Optical Fiber Recoater
◆ Automatic operation with various sizes of quartz molds available
◆ UV curing LEDs provide fast curing times and long lifetimes
◆ Easily exchangeable molds, resin bottle and pump assemblies
◆ Exact volume of resin to the mold cavity to ensure consistent recoat performance.
◆ Designed for Acrylate-Coated Fibers
SPECIFICATIONS
Model Number | FR-100 | FR-101 | |
Applicable Fiber Count | Single fiber | ||
Mold Material | Quartz glass | ||
Recoat Diameters | 195μm, 280μm, 450μm, 600μm, 850μm,1000μm | ||
Recoat Length | 4 - 50mm , accuracy ±20% | ||
Applied UV Resin | Acrylate | ||
Curing Lamp | Up and down 2 directions, Irradiation position, irradiation time | ||
UV Light Curing Time | UV resin injecting time: 20s; Curing time: 4s ; Recoat length: 20mm; DSM950-200 (Test environment temperature: 25℃) | ||
Coating Program | 35 modes | ||
Proof Program | 40 modes | ||
Other | LED auxiliary lighting, easy to observe the glue level.The coating mold is replaced by the customer The coating mold is replaced by the customer | ||
Data Storage | 1000 records in total | ||
Proof - tester | / | 0.2~2.0kgf | |
Power Supply | Adapter: AC100~ 240 V ; 50 /60Hz ; DC11~13.5V , 5A | ||
Dimension/Weight | 250(W)*170(L)*176(H)/4.3kg | 250(W)*170(L)*170(H)/4.8Kg | |
ACCESSORIES
Description | Model Number | Quantities |
Fiber recoater mainbody | FR-100/FR-101 | 1 pc |
Mold | FR100-MOLD-280 (Optional) | 1 set |
Power cord | ACC-97 | 1 pc |
AC adapter | ADC-97 | 1 pc |
USB manual | / | 1 pc |
Tools | HEX-01/02/03 | 1 set(M3/M2.5/M2) |
Quick operation manual | / | PDF file in USB |
Instruction | FR100-QRG-100 | 1 pc |
Carton | X41F | 1 pc (440x380x270mm) |
Foam liner | / | 1 pc |
Optional Modes
Description | Model Number | Remarks |
195μm mode | FR100-MOLD-195 | Recoat diameter: 195μm ; Recoat length: 50mm |
255μm mode | FR100-MOLD-255 | Recoat diameter: 255μm ; Recoat length: 50mm |
280μm mode | FR100-MOLD-280 | Recoat diameter: 280μm ; Recoat length: 50mm |
320μm mode | FR100-MOLD-320 | Recoat diameter: 320μm ; Recoat length: 50mm |
450μm mode | FR100-MOLD-450 | Recoat diameter: 450μm ; Recoat length: 50mm |
600μm mode | FR100-MOLD-600 | Recoat diameter: 600μm ; Recoat length: 50mm |
670μm mode | FR100-MOLD-670 | Recoat diameter: 670μm ; Recoat length: 50mm |
850μm mode | FR100-MOLD-850 | Recoat diameter: 850μm ; Recoat length: 50mm |
1000μm mode | FR100-MOLD-1000 | Recoat diameter: 1000μm ; Recoat length: 50mm |
UV resin bottle | FR100-BTL-01 | UV resin bottle |
Peristaltic pump components | FR100-PUMP-01 | Peristaltic pump ; Peristaltic pump tube ; Peristaltic pump head |
