S-12PM Polarization Maintaining Fiber Fusion Splicer

Share to:

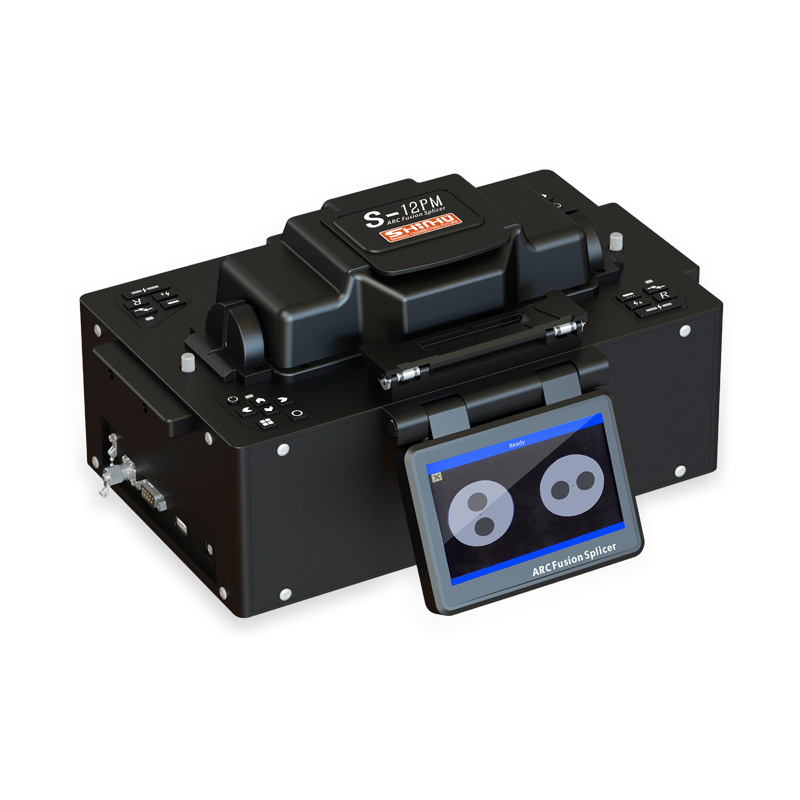

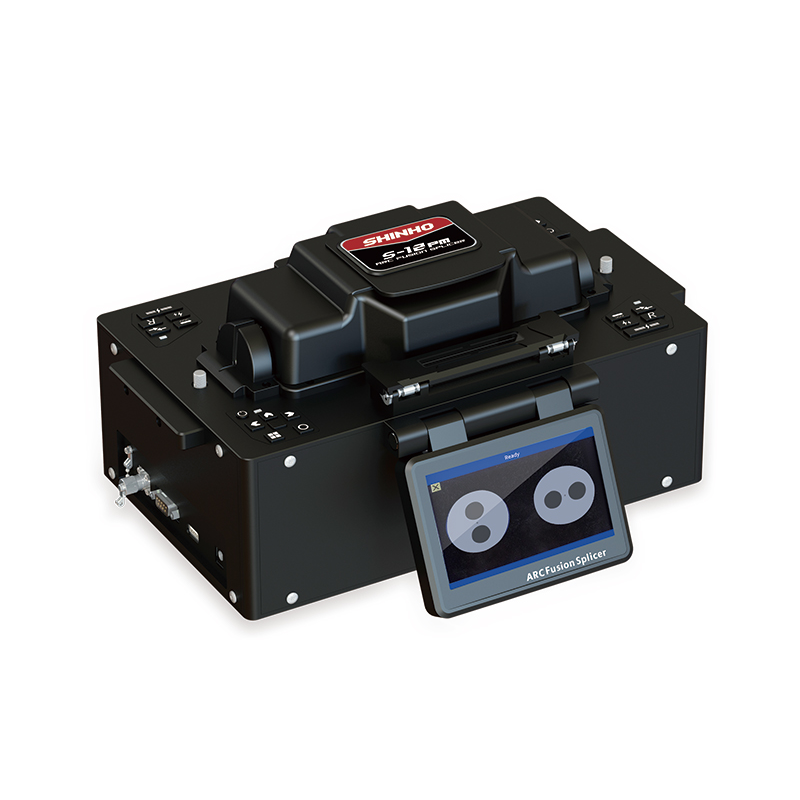

S-12PM Polarization Maintaining Fiber Fusion Splicer

Name: S-12PM Polarization Maintaining Fiber Fusion Splicer
Brand: SHINHO
Rating: 5.0 (82 reviews)

SHINHO S-12 Polarization Maintaining (PM) fiber fusion splicer is with the latest accurate fiber alignment technology, it has very stable performance and low fusion loss, it is specially designed for Panda ,bow-tie and elliptical fibers.

Profile alignment system(PAS)
Endview alignment system
fully automatical alinging and splicing process
axis rotated alignment at 45°and 90°

Availability:

Quantity:



Inquiry Add to Basket Download

Model:
S-12
Brand:
SHINHO

Product Description

Product Description

Designed for Polarization Maintaining Fiber

◆ Fully automatic operation

◆ Core to core alignment, low splicing loss

◆ Support fiber alignment at different angles

◆ Storage: 8000/100 groups fusion records/images

◆ Real-time ARC calibration, adjustable ARC position

◆ Suitable for 60~400μm PM fibers' splicing

◆ Direct fiber end face view, more accurate alignment

◆ Fiber profile/end view dual mode aligning technology

◆ Precise integrated propulsion and new focusing design

◆ Applicable to variety fibers splicing, such as Panda, bow-tie and elliptical fiber

MORE INFO

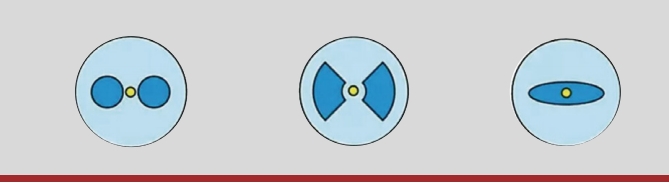

Applicable Fibers Panda/Bow-tie/Elliptical

微信截图_20250427151021

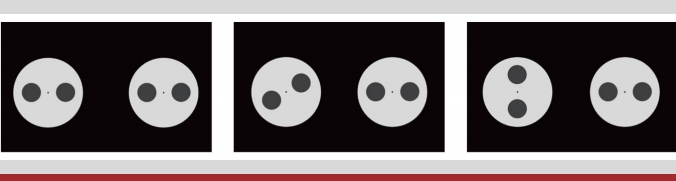

Axis Rotation Alignment at a Specific Angle /45/90 degrees aligned

微信截图_20250427151225

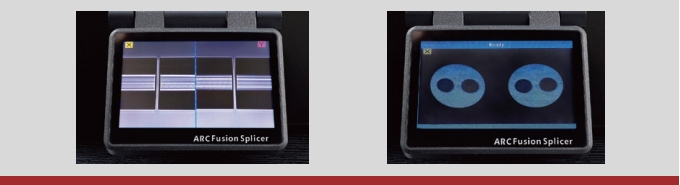

Multiple Alignment Modes Profile rotated & end-view rotated lignment method

微信截图_20250427151336

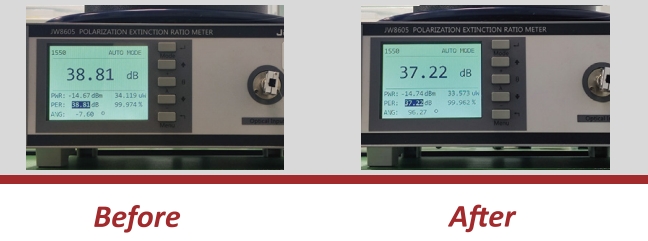

Polarization Extinction Ratio36.8dB (typical)

微信截图_20250427151414

SPECIFICATIONS

Model Number	S-12PMS	S-12PM	S-12PM+
Applicable Fiber	Telecommunication Fibers: SM/MM/DS/NZDS/EDF
	PM Fibers: Panda fiber, Bow-tie and Elliptical fiber
Cladding Diameter	60~80µm	80~125µm	125~400µm
Coating Diameter	135~900μm
Cleaved Length	9~10mm(standard)
Alignment Method	Profile and fiber end-view available
Typical Splice Loss	SMF: 0.03dB; MMF: 0.02dB; NZDS:0.05dB;PMF 0.06dB
Typical Splice Time	SMF/MMF: 20 seconds; PM: <60 seconds
Return Loss	>60dB
Operation Mode	Manual/Auto
Heating Mode	Manual/Auto
Splicing Program	40 modes
Typical Heating Time	Typical 25s, could customize
Extinction Ratio	36.8dB(PANDA)
PM Splicing Function	Support splicing at 0, 45 degree and 90 degree
Electrode Life	>2000 times, easy to replace the electrodes
Data Storage	10000 groups fusion records, 100 groups images
Viewing Display	5” HD color LCD Monitor
Terminal	USB 2.0 port, for software upgrading, records exporting, RS232 port, output signal customizable
Dimension	330mm(L)x205mm(W)x172mm(H)
Weight	6.3kg
Operating Condition	-10°C~+50°C
Storage Condition	-20°C~+60°C
Power Supply	Adaptor, input: AC100~240V(50/60Hz), output: DC12.0v⎓10.0A

PACKAGE

Item	Quantity	Item	Quantity	Item	Quantity
S-12PMS	1pc	S-12PM	1pc	S-12PM+	1pc
X-53D Fiber Cleaver	1pc	X-50F Fiber Cleaver	1pc	—	—
Fiber Stripper	1pc	Fiber Stripper	1pc	Fiber Stripper	1pc
Fiber Holders	1pair	Fiber Holders	2pair	Fiber Holders	3pair
Electrodes	1pair	Electrodes	1pair	Electrodes	1pair
Fiber Adapter	1pair	Fiber Adapter	1pair	Fiber Adapter	1pair
User Manual (USB driver)	1pc	User Manual (USB driver)	1pc	User Manual (USB driver)	1pc
Power Adapter	1pc	Power Adapter	1pc	Power Adapter	1pc
Power Cord	1pc	Power Cord	1pc	Power Cord	1pc
Carring Case	1pc	Carring Case	1pc	Carring Case	1pc
