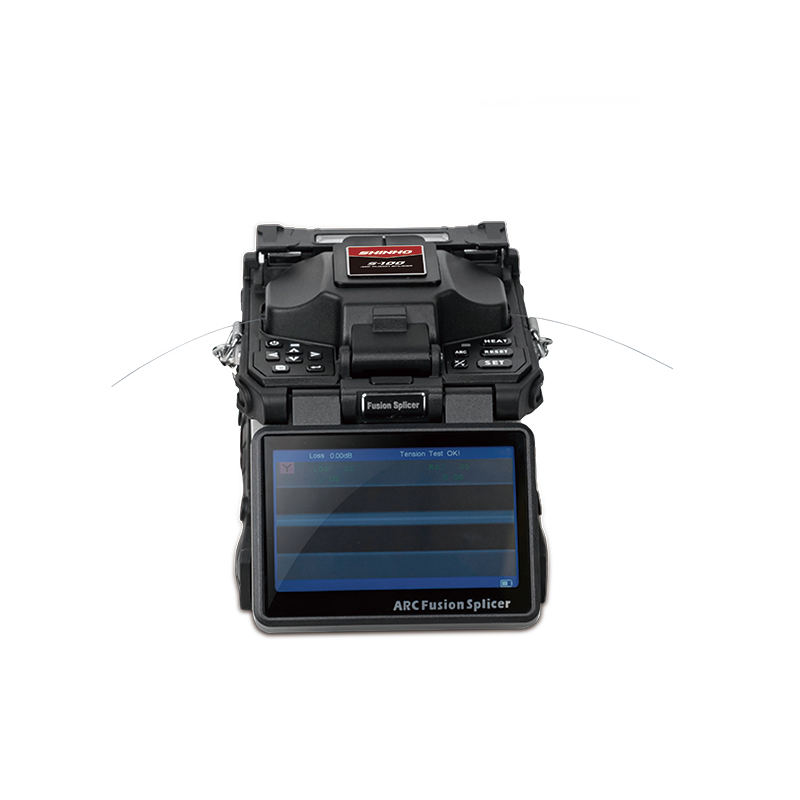

S-100 Small Diameter Fusion Splicer

Imported motor for precise fiber core alignment
5” high resolution display, dual operating mode
Intelligent operating system
Durable electrodes
Availability:
Quantity:
  • S-100

  • SHINHO

Product Description


Specially Designed For Small Diameter Splicing



◆ Applicable to 50~80µm small diameter fiber splicing

◆ Imported motor, high-precision fiber core alignment

◆ 5" high resolution display, dual operating mode (touch screen & button)

◆ Intelligent operating system, rapid response time

◆ Increased energy efficiency, typical fusion splicing heating 300 times

◆ Compact size, lightweight, easy to carry

◆ USB port for software upgrading, records exporting



MORE INFO



Precise structural design

6 Motor Core to Core Alignment

Inductive automatic heater High magnification Imported motor

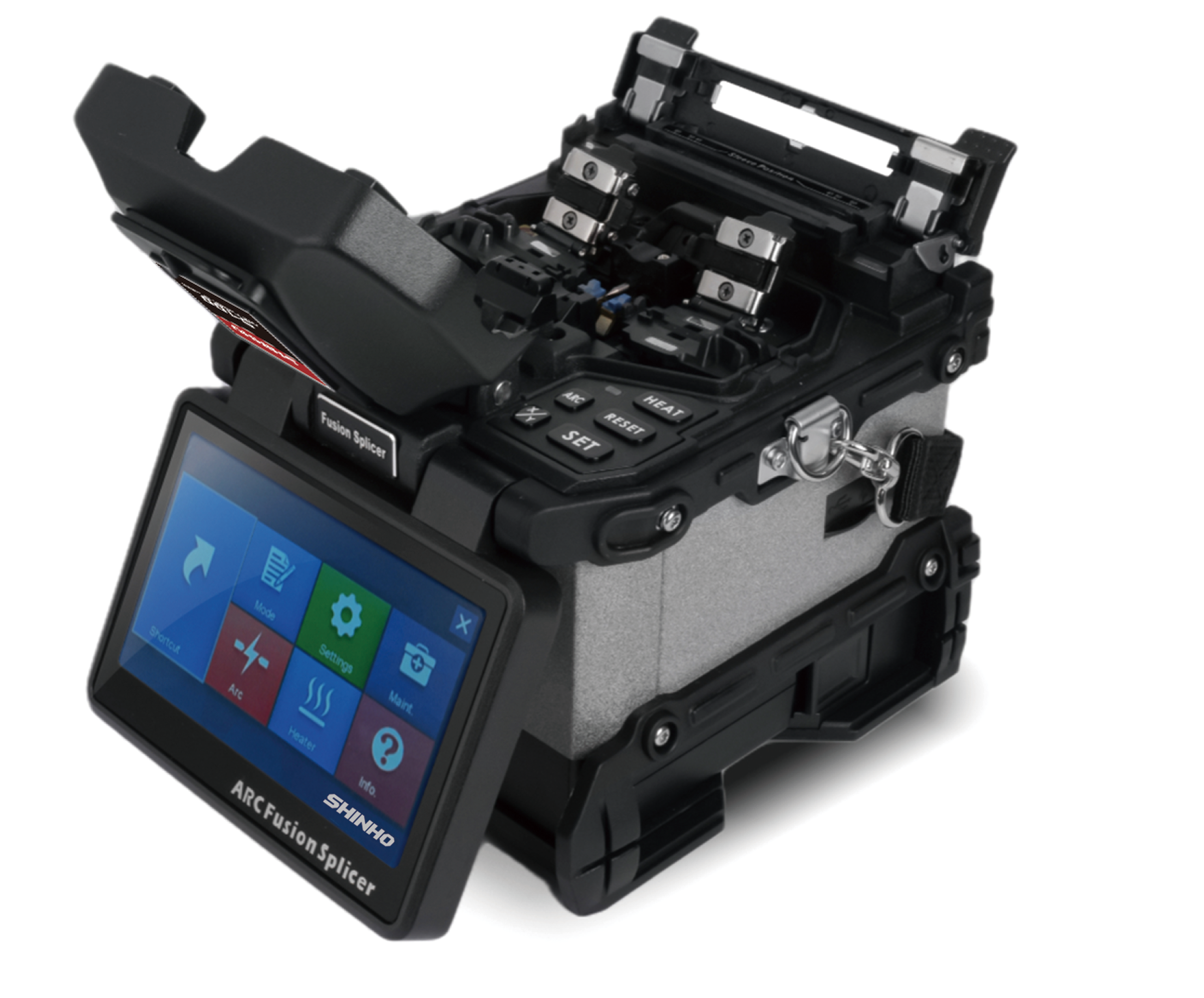

Anti-shock, dust-proof and water-proof, 5" touch LCD


SPECIFICATIONS


Alignment Method

6 motors core to core alignment

Applicable Fiber

SM/MM/DS/NZDS etc.

Cladding Diameter

50~80µm

Coating Diameter

100~160µm

Typical Splice Loss

50µm-50µm<0.2dB; 80µm-50µm<0.4dB

Return Loss

>60dB

Cleaved Length

10~16mm (cladding diameter<250µm); 16mm (cladding diameter 250~1000µm)

Splicing Program

100 modes

Operation Mode

Manual/ Auto

Auto-Heating

Available

Splicing Time

6-12 seconds

Heating Time

18-26 seconds for 40mm and 60mm shrinkable sleeves

Fiber Magnification

400 X (X or Y view), 200X (X and Y view)

Viewing Display

Dual high sensitivity camera, 5.0" HD color LCD touch screen

Data Storage

Last 20000 results and 100 images

Loss Evaluation

Available

Tension Test

1.8~2.2N

Interface

GUI menu interface, easy for operation

Battery Capacity

Detachable 5200mAh Li-battery, typical 300 cycles splicing and heating

Power Supply

Adapter, Input: AC100~240V (50/60Hz), output: DC11~13.5V

Electrode Life

More than 5000 ARC discharges, easy to replace

Terminal

USB 2.0 port, for software upgrading, records exporting

Operating Condition

Altitude: 0~5000m; Humidity: 0~95%; Temperature: -10°C~+50°C; Max win: 15m/s

Dimension/Weight

155mm (L)×144mm (W)×155mm (H) (including rubber bumper)/2.37kg (with battery)


PACKAGE


Small Diameter Fusion Splicer

Fiber Stripper

Cooling Tray

Spare Electrodes

Cleaning Brush

Carrying Case

Power Adapter

Power Plug

User Manual

Strap
