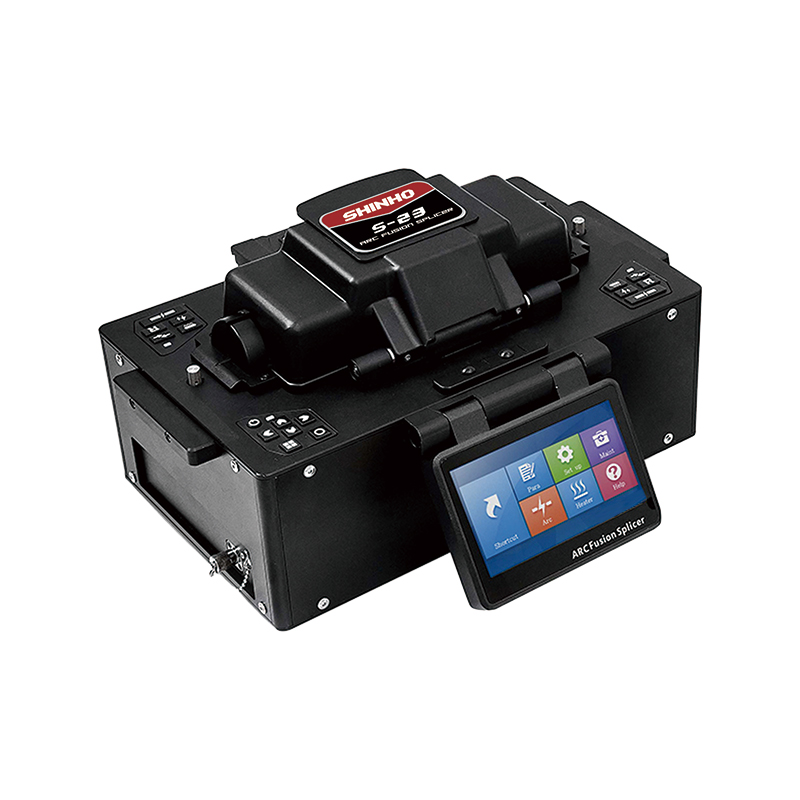

S-23 Hollow Core Fiber Fusion Splicer

Name: S-23 Hollow Core Fiber Fusion Splicer
Brand: SHINHO
Rating: 5.0 (13 reviews)

Fully automatic operation
Storage: 10000/100 groups fusion records/images
Real-time ARC calibration, adjustable ARC position
Suitable for 125~250μm cladding fiber splicing
Precise profile mode aligning technology
Precise integrated propulsion and new focusing desig

Availability:

Quantity:



Inquiry Download

Model:
S-23
Brand:
SHINHO

Product Description

Product Description

◆ Fully automatic operation

◆ Storage: 10000/100 groups fusion records/images

◆ Real-time ARC calibration, adjustable ARC position

◆ Suitable for 125~250μm cladding fiber splicing

◆ Precise profile mode aligning technology

◆ Support wind-proof cover open and close to work automatically

◆ Precise integrated propulsion and new focusing design

SPECIFICATIONS

Model No.	S-23
Applicable Fiber	Hollow Core Fiber
Cladding Diameter	125~250µm
Coating Diameter	250~900μm
Cleaved Length	9~10mm(standard)
Alignment Method	Profile and fiber end-view available
Typical Splice Loss	HCF:0.03dB
Typical Splice Time	HCF ＜150 seconds
Operation Mode	Manual/Auto
Heating Mode	Manual/Auto
Splicing Program	40 modes
Typical Heating Time	Typical 25s, could customize
Electrode Life	>2000 times, easy to replace the electrodes
Data Storage	10000 groups fusion records, 100 groups images
Viewing Display	5” HD color LCD Monitor
Terminal	USB 2.0 port, for software upgrading, records exporting, RS232 port, output signal customization
Dimension	330mm(L)x205mm(W)x172mm(H)
Weight	6.3kg
Operating/Storage Condition	-10°C~ +50°C/-20°C~ +60°C
Power Supply	Adaptor, input: AC100~240V(50/60Hz), output: DC12.0v⎓ 10.0A

PACKAGE

Item	Quantity	Item	Quantity	Item	Quantity
Fusion Splicer	1pc	Spare Electrodes	1pair	Power Adapter	1pc
Fiber Holder (400)	1pair	Fiber Adapter	1pair	Power Cord	1pc
Fiber Stripper (250/400)	2pcs	User Manual(USB drive)	1pc	Carrying Case	1pc
