S-22 Multi-Core Fiber Fusion Splicer

Name: S-22 Multi-Core Fiber Fusion Splicer
Brand: SHINHO
Rating: 5.0 (81 reviews)

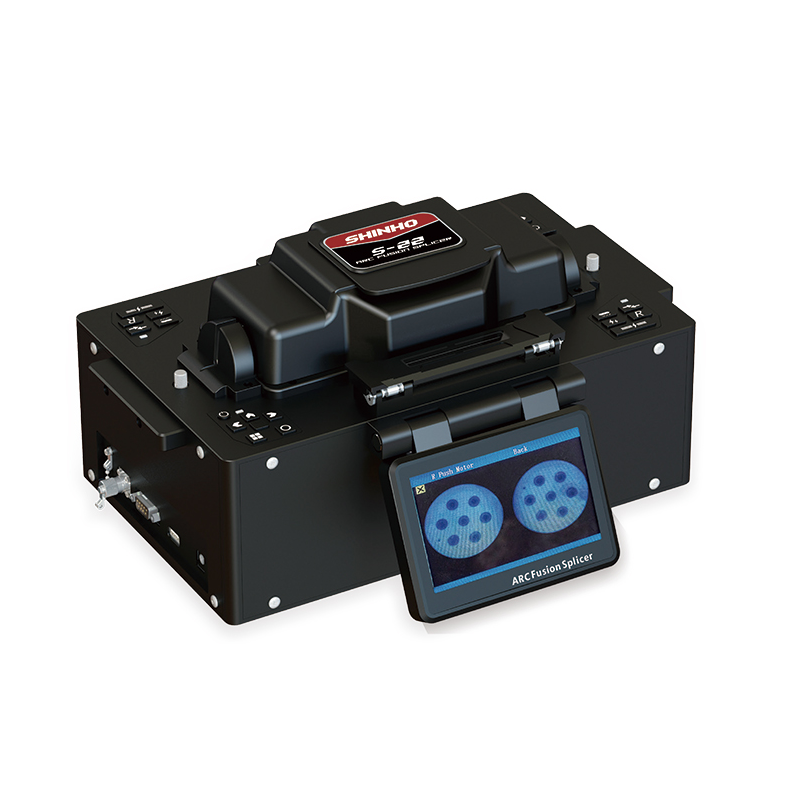

SHINHO S-22 Multi-Core Fiber Fusion Splicer is designed to splice the multi-core fibers, it is the first fully automatic multi-core fiber fusion splicer made in China.

Dual fiber endview
2,4,6,7,8 core multicore fibers splicing
fast and easy to identify the mark
Low everage splicing loss

Availability:

Quantity:



Inquiry Add to Basket Download

Model:
S-22
Brand:
SHINHO

Product Description

Product Description

The 1st Independent Research & Development Fully Automatic Multi-core Fiber Fusion Splicer

◆ Different types of fibers can be spliced

◆ Real-time ARC calibration, ARC position adjustable

◆ Fiber profile/end view dual mode aligning technology

◆ Suitable for 125~250μm multi-core fiber fusion splicing

◆ Support software upgrade, fusion records/images export

◆ Precision integrated propulsion and new focusing design

◆ Support wind-proof cover open and close to work automatically

◆ With battery inside, could be used for outdoor projects

◆ Dual fiber end imaging patent, direct fiber end face view, more accurate alignment

MORE INFO

SPECIFICATIONS

Applicable Fiber	Telecommunication Fibers: SM/MM/DS/NZDS/EDF
Applicable Fiber	Multi-core Fiber: 2, 4, 6, 7, 8 Cores Fiber
Cladding Diameter	125~250µm
Coating Diameter	250~900µm
Cleaved Length	9~15mm (standard)
Alignment Method View	PAS and fiber end-face direct view available
Typical Splicing Loss	SMF:0.03dB; 4-core fiber: 0.05dB (each channel); 7-core fiber: 0.15dB (each channel)
Typical Splicing Time	Single core fiber<20 seconds; Multi-core fiber<2 minutes
Operation Mode	Manual/Auto
Heating Mode	Manual/Auto
Typical Heating Time	Typical 30s, support user-defined setting
Splicing Program	40 modes
Battery Capacity	Detachable 6800mAh Li-battery
Electrode Life	>2000 times, easy to replace the electrodes
Data Storage	10000 groups fusion records, 100 groups images
Viewing Display	5”HD color LCD Monitor
Terminal	USB 2.0 port, for software upgrading, records exporting, RS232 port, output signal customizable
Dimension/Weight	330mm(L)x205mm(W)x172mm(H)/6.4kg
Operating/ Storage Condition	Altitude: 0~5000m; Humidity: 0~95%; Temperature: -10°C~+50°C; Max wind: 15m/s
Power Supply	Adaptor, input: AC100~240V(50/60Hz), output: DC11~13.5V, 5A

PACKAGE

Item	Quantity	Item	Quantity	Item	Quantity
MCF Fusion Splicer	1pc	Fiber Cleaver	1pc	Fiber Stripper	1pcs
Fiber Holders	1pairs	Spare Electrodes	1pair	User Manual(USB drive)	1pc
Power Adapter	1pc	Power Cord	1pc	Carrying Case	1pc
