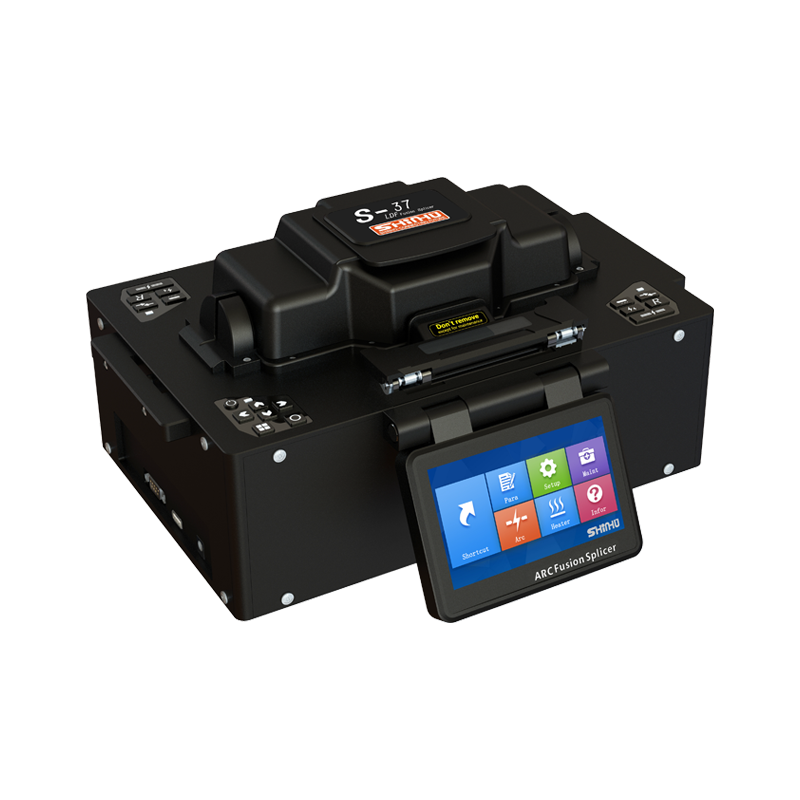

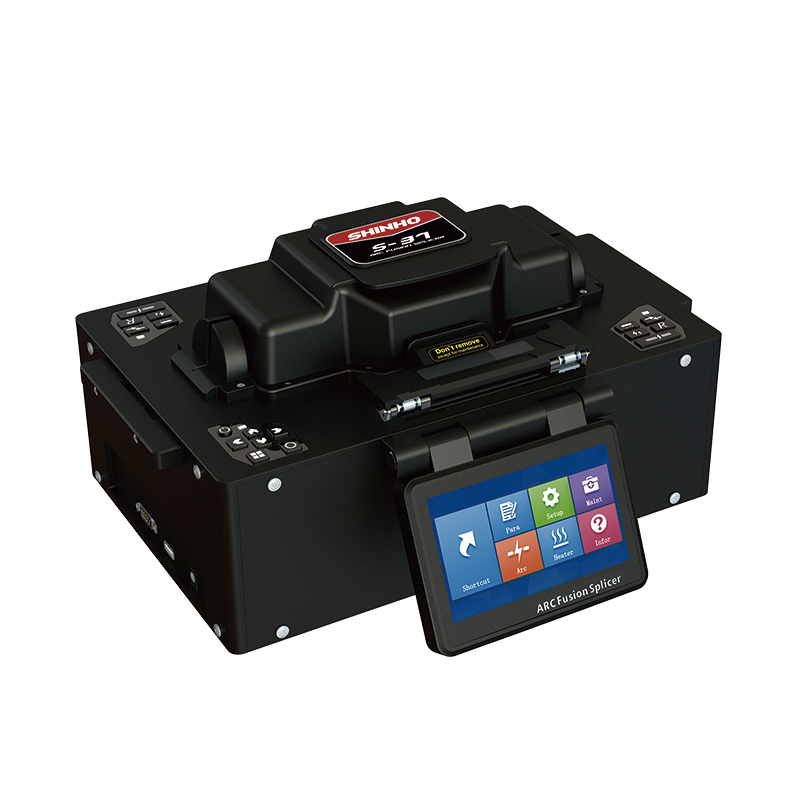

S-37 LDF Specialty Fiber Fusion Splicer

Name: S-37 LDF Specialty Fiber Fusion Splicer
Brand: SHINHO
Rating: 5.0 (32 reviews)

SHINHO S-37 is the latest model we developed, it could splice fiber cladding diameter from 125 to 500μm with low splice loss.
We equipped the machine with 3 different fiber holders, and 2 pairs of spare electrodes.

For both passive and active LDFs
New ARC Sweep technology
Special ARC calibration technology
Fiber laser manufacturing& repairing

Availability:

Quantity:



Inquiry Add to Basket Download

Model:
S-37
Brand:
SHINHO

Product Description

Product Description

Designed for Large Diameter Fiber Splicing

◆ Comply with CE/Rohs international standard

◆ Accurate alignment, world standard fusion loss

◆ Real-time ARC calibration, adjustable ARC position

◆ Ruggedized body, water-resistant, anti-dust, anti-shock

◆ Easy to maintain, easy to replace the electrodes

◆ USB port for software upgrading, records exporting

◆ Applicable to cladding diameter 125μm~500μm fibers

◆ Support mutual fusion of different core diameter fibers

◆ Support 8000/200 groups fusion records/fusion images

MORE INFO

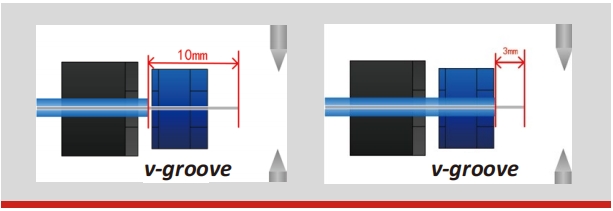

Short cleaved length supported Min.:3mm 微信截图_20250430104408

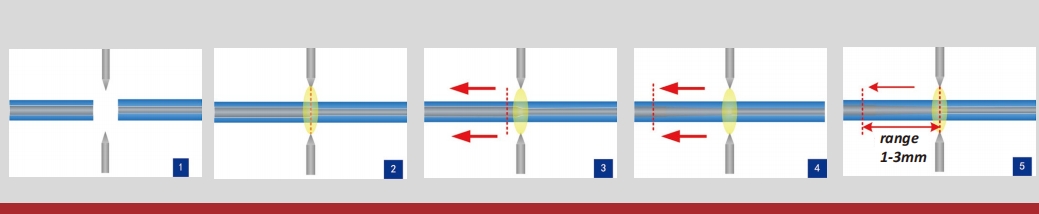

Sweep to increase plasma midfield region

微信截图_20250430104602

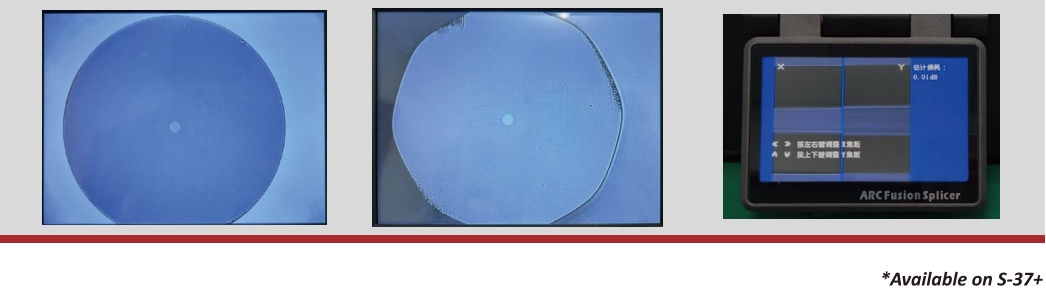

Passive-Active fiber splicing capability

微信截图_20250430104706

SPECIFICATIONS

Model No.	S-37	S-37+
Alignment Method	Core to core alignment
Applicable Fiber	SM(ITU-T G652), MM(ITU-T G651), DS(ITU-TG653),NZ-DS, EDF, DCF, LDF
Typical Splicing Loss	SM(ITU-T G652):0.03dB; MM(ITU-T G651):0.02dB; DS(ITU-T G653):0.05dB
Cladding Diameter	125~ 600µm	125~ 680µm
Coating Diameter	210~900µm
Return Loss	>60dB
Splicing Program	40 modes
Operation Mode	Manual/ Auto
Heating Mode	Manual/Auto
Range of Sweep	—	Available
Typical Splice Time	35 seconds(Test fiber: 400µmcladding)
Typical Heating Time	26 seconds, support user-defined setting
Fiber Magnification	100~200X adjustable
Viewing Display	Dual high—sensitivity camera,5”HD color LCD Monitor
Data Storage	10000 groups fusion records， 100 groups images
Cleaved Length	3~15mm (standard:10mm)
Interface	GUI menu interface, easy for operation
Power Supply	Adaptor, input: AC100-240V(50/60Hz), output: DC11-13.5V,10A
Electrode Life	125µm: 3000 arcs; 250µm: 1000 arcs
Terminal	USB 2.0 port, for software upgrading, records exporting, RS232 port, output signal customizable
Operating/ Storage Condition	-10℃ ~+50℃/-20°C~+60°C
Dimension/Weight	330mm(L)×220mm(W)×170mm(H) /7.29kg

PACKAGE

Item	Qty	Item	Qty	Item	Qty
LDF Fusion Splicer	1pc	Fiber Stripper（250/400）	2pcs	Fiber Holders（125/250/400）	3pairs
Spare Electrodes	1pair	User Manual(USB drive)	1pc	Power Adapter	1pc
Power Cord	1pc	Carrying Case	1pc	—	—

FAQ

1. Why Choose Xianghe?

----Xianghe is founded in 2012 by a team of engineers with 20 year's experience in this industry. We focus on the manufacturing of fusion splicer and the quality since beginning.The software and hardware are all designed and implemented at our own plant. We have professional production line and staff who are making nice quality in short time.

未标题-5

2. What Certificate you have?

-----CE,Rohs, and ISO.

fusion splicer ces

3.Is there any discount for the splicer?

-----Yes, the price depends on the quantity, please contact us for details.

4. What should I do if I have a problem with the machine?

-----When you have problem, please share video or photo to us, we will guide you how to solve the problem. Usually most problem could be solved via remote guidance or software upgrading. We are experienced in this.

5. How to be your distributor?

-----We welcome customers to be our distributor. We will give you full support. Contact us if you are interested.
