S-16 Handheld Outdoor Robust Fiber Fusion

Share to:

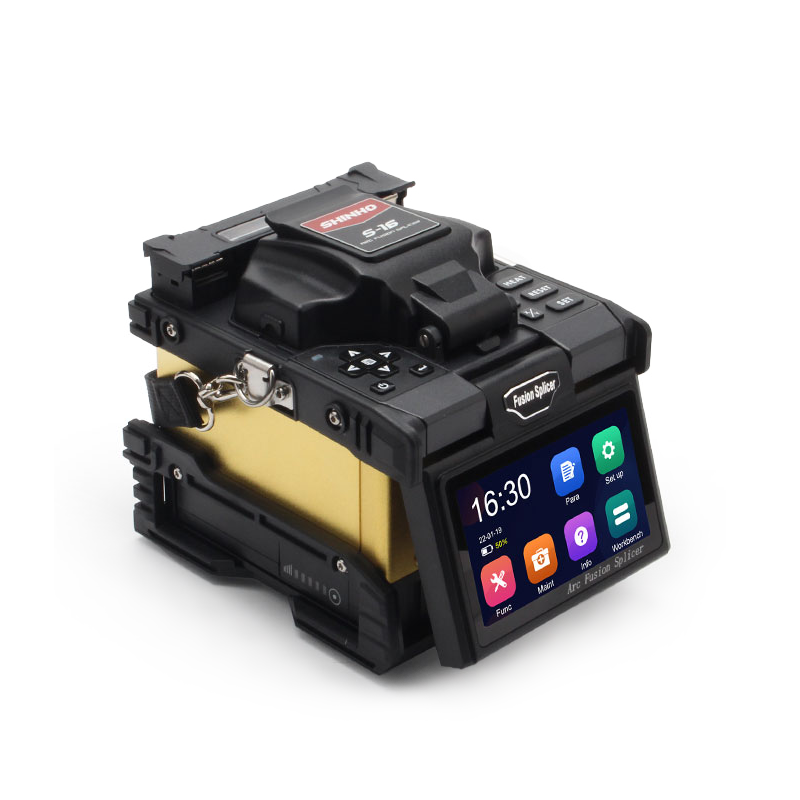

S-16 Handheld Outdoor Robust Fiber Fusion

Name: S-16 Handheld Outdoor Robust Fiber Fusion
Brand: SHINHO
Rating: 5.0 (2 reviews)

S-16 Fiber fusion splicer is a robust and stable model, used for both indoor and outdoor projects. it is with the upgrade the CPU to get the faster operation speed. It is also with the latest fiber alignment technology to get the low fusion loss. It is suitable for MAN/Telecommunication/FTTx and other related fiber optical projects.

Rapid response time
Universal fiber holder
Pressure heater technology
save on time and cost of maintainence

Availability:

Quantity:



Inquiry Download

Model:
S-16
Brand:
SHINHO

Product Description

Product Description

Robust Machine For Fiber Optical Projects

◆ PAS technology

◆ Multifunction fiber holders

◆ 6 seconds splicing & 18 seconds heating

◆ Dual-mode operation with touch screen and keyboard

◆ Full auto splicing and low fusion loss

◆ Real-time heating temperature monitoring

◆ All metal material, robustness and durable

◆ High-quality operation under wind and rain, dust and water protection, lP52 certificate

◆ Suitable for medium backbone, FTTx projects etc.

VIDEO

MORE INFO

Precise structural design

Automatic calibration

Inductive automatic heater

Fast heating

Anti-shock, dust-proof and water-proof

Operating Condition

SPECIFICATIONS

Applicable Fiber	G651/G652/G653/G655/G657 etc.
Cladding Diameter	80~150μm
Coating Diameter	160~3000μm
Cleaved Length	10~16mm (coating diameter<250μm), 16mm (coating diameter:250~1000μm)
Typical Splice Loss	G651: 0.01dB; G652: 0.02dB; G653: 0.04dB; G655: 0.04dB; G657: 0.02dB
Return Loss	＞60dB
Splicing Program	40 modes
Operation Mode	Manual/Auto
Auto-Heating	Available
Splice Time	6~12 seconds
Heating Time	18~26 seconds for 40mm and 60mm shrinkable sleeves
Fiber Magnification	320X (X or Y view), 160X (X and Y view)
Viewing Display	Dual high sensitivity camera, 4.3" HD color LCD touch screen
Data Storage	8000 groups fusion records
Loss Evaluation	Available
Tension Test	1.8~2.2N
Interface	GUI menu interface, easy for operation
Battery Capacity	Detachable 5200mAh Li-battery, typical 250 cycles splicing and heating
Power Supply	Adapter, input: AC100~240V (50/60Hz), output: DC11~13.5V
Electrode Life	More than 4000 ARC discharges, easy to replace
Terminal	USB 2.0 port, for software upgrading, records exporting
Operating Condition	Altitude: 0~5000m; Humidity: 0~95%; Temperature: -10°C~+50°C; Max wind: 15m/s
Dimension/Weight	165mm(L) × 135mm(W) × 140mm(H) (including rubber bumper)/2.05kg(with battery)

PACKAGE

Fusion Splicer

Fiber Cleaver

Drop Cable Stripper

Fiber Stripper

Power Plug

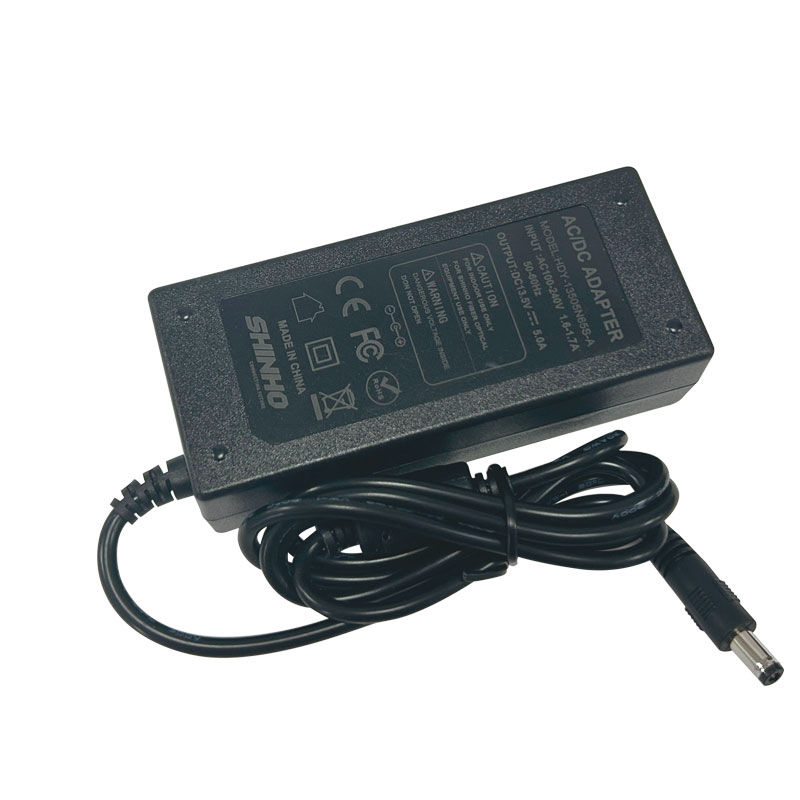

Power Adapter

Strap

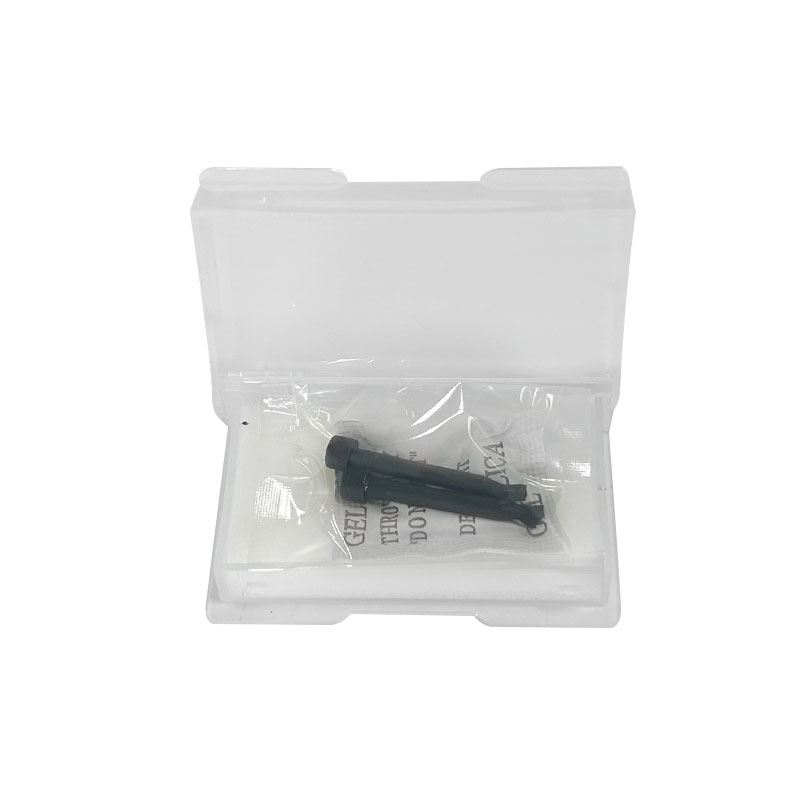

Spare Electrodes

User Manual

Cooling Tray

Cleaning Brush

Carrying Case

CUSTOMER PRAISE

banner3

FAQ

1. Why Choose SHINHO?

----SHINHO is founded in 2012 by a team of engineers with 20 year's experience in this industry. We focus on the manufacturing of fusion splicer and the quality since beginning.The software and hardware are all designed and implemented at our own plant. We have professional production line and staff who are making nice quality in short time.

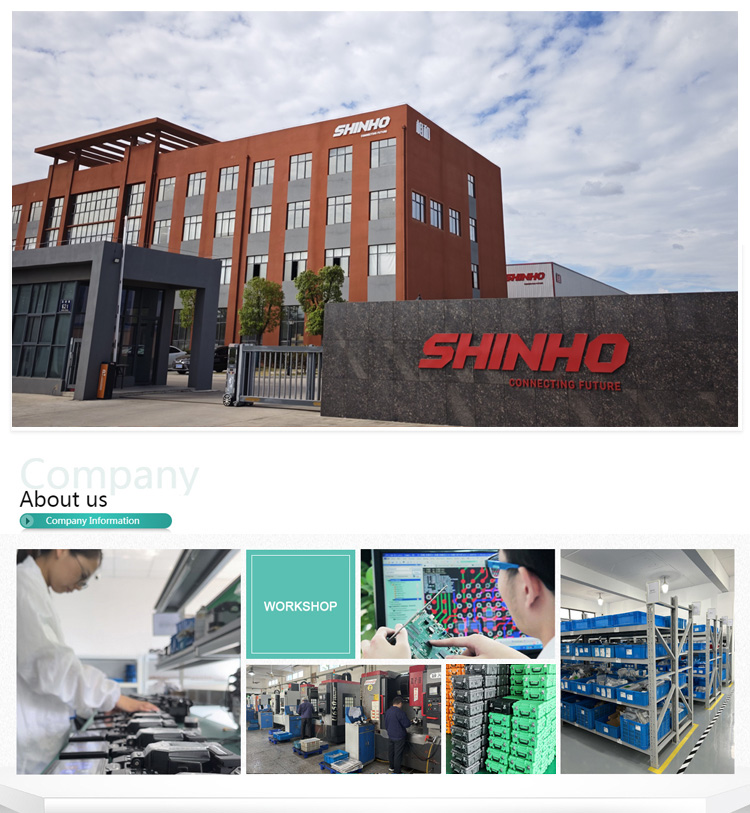

fusion splice factory

2. What Certificate you have?

-----CE,Rohs, and ISO.

fusion splicer ces

3. What is the warranty?

----- 3 Years from the date from you received the splicer.

4.Is there any discount for the splicer?

-----Yes, the price depends on the quantity, please contact us for details.

5. What should I do if I have a problem with the machine?

-----When you have problem, please share video or photo to us, we will guide you how to solve the problem. Usually most problem could be solved via remote guidance or software upgrading. We are experienced in this.

6. How to be your distributor?

-----We welcome customers to be our distributor. We will give you full support. Contact us if you are interested.
