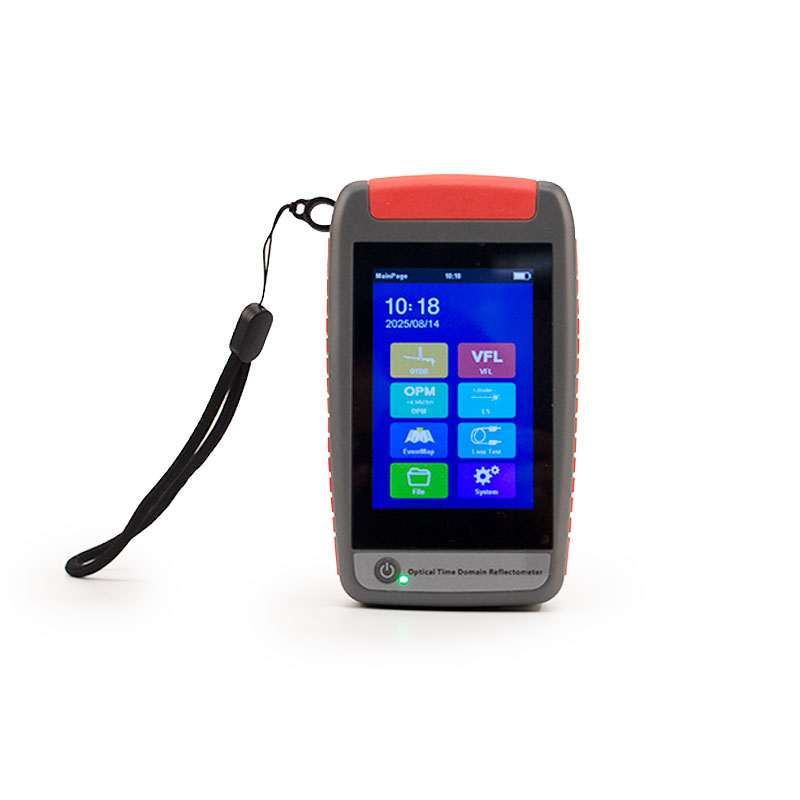

Name: X-350 Series OTDR
Brand: SHINHO
Rating: 5.0 (56 reviews)

3.5 “FTF LCD , capactive TP
Minimum measurement: 2.5 m
Type C USB
Large capacity battery, 8 hour

Product Description

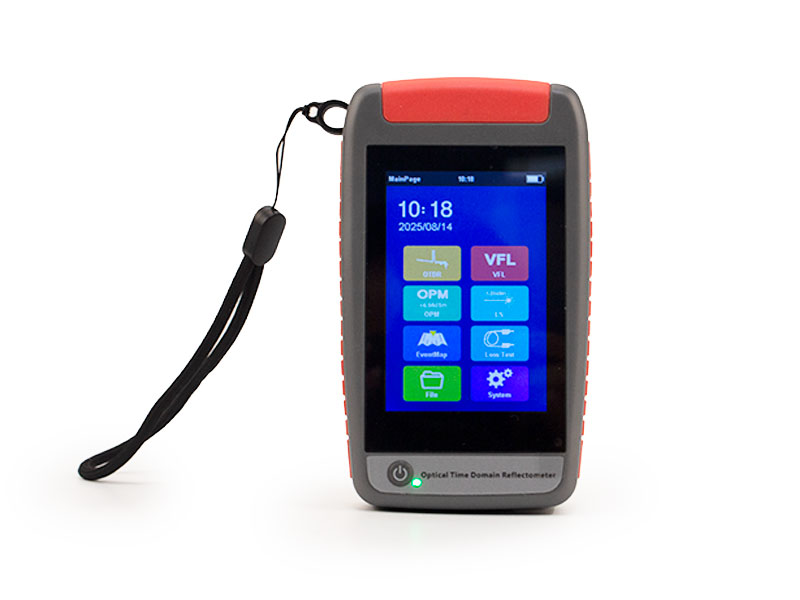

1-OTDR

FEATURES

◆ 3.5 “FTF LCD , capactive TP

◆ Minimum measurement: 2.5 m

◆ Type C USB

◆ Large capacity battery, 8 hours

◆ Multi function integration: OTDR / LS /VFL/Flashlight

◆ Support PDF output report

◆ Palm design,compact and light weight

◆ Hidden interface , shock and fall resistant

TECHNICAL SPECIFICATIONS

Optical Time Domain Reflectometer
Module		X350-D22	X350-SF1		X350-SF2		X350-SF3	X350-SF4			X350-SF5
Wavelength		1310/1550±20nm	1 310±20nm		1550±20nm		1610±5nm	1625±5nm			1650±5nm
Dynamic range		22/20dB	22dB		22dB		22dB	22dB			22dB
Fiber type		G.652D
Event dead zone		2m
Attenuation zone		8 m
Measuring range		100m/500m/ 1 km/2km/5km/ 10 km/20 km/40 km/60km/80km
Pulse width		5 ns/ 10 ns/20 ns/50ns/ 100ns/275 ns/500ns/ 1us/2us/5us/ 10us
Accuracy		± ( 1m+Sampling interval+0. 005% X measuring range)
Linearity		±0 .2dB/dB
Sample points		Maximum sampling points ：20000
Sampling resolution		25cm~8m
Loss resolution		0 .001 dB
Range resolution		0 .001m
Refractive index		1 .0000~2 .0000
Reflection accuracy		±3dB
File format		Standard sor file format
Safety level		OTDR/LS:Class 2；VFL:Class 3B
Temperature/ humidity		Ambient temperature：- 10℃~50℃ Storage ambient temperature：-40℃~+70℃ Humidity：0~90%(non condensing)
Size/weight		Size ：130x78x35mm / weight：215g（include battery）
OPM				LS					Other
wavelength	850/1270/1300/1310/1490/1550 /1577/1610/1625/1650nm			wavelength		OTDR wavelength			VFL （optional）	（Red）650nm： ≥10mW （Green）515nm： ≥10mW
Range	A:-70~+10dBm B:-50~+26dBm			Laser type		FP - LD/ DFB
Frequency	270Hz/330Hz/1kHz/2kHz			Power		-5dB m±3dB (Adjust)			Battery	2000mAh/3 .7V
Uncertainty	±5%			Uncertainty		±5%			Adapter	USB( Type C)
Connector	Universal			Connector		SC			Memory	Inside≥400 External:SD
