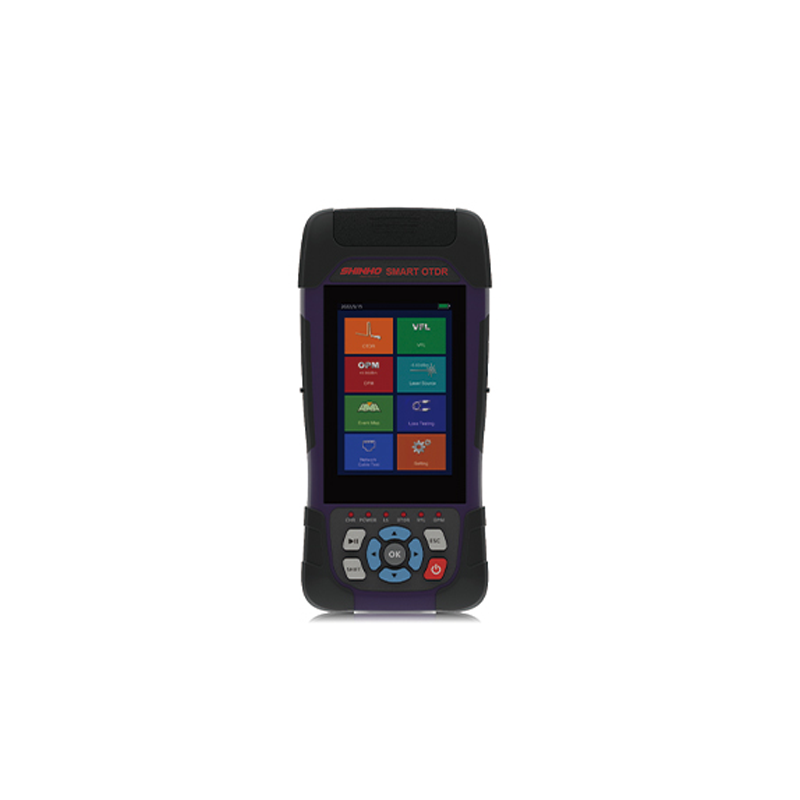

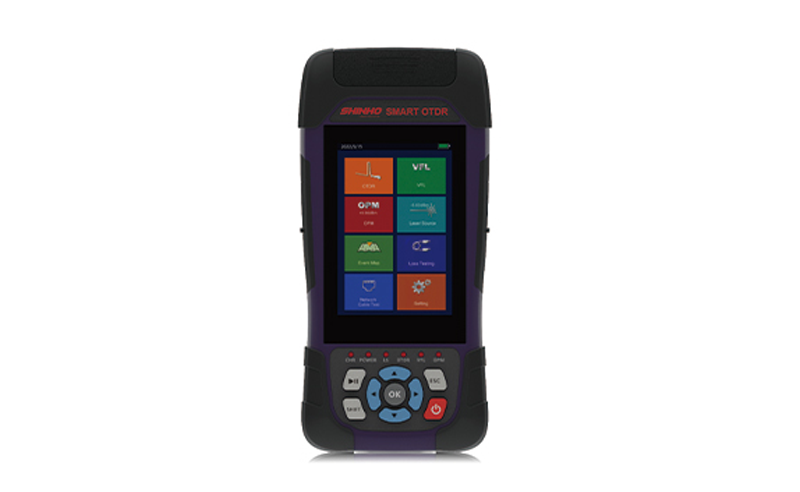

X-100S Smart Series OTDR

Name: X-100S Smart Series OTDR
Brand: SHINHO
Rating: 5.0 (34 reviews)

Availability:

Quantity:



Inquiry Add to Basket Download

Model:
X-100S
Brand:
SHINHO

Product Description

Product Description

FEATURES

◆ OTDR/event map/laser source/power meter/VFL/RJ45/Line finding/Lighting 8 in 1

◆ 3.5-inch color LCD screen with capacitive touch screen, support multi-touch

◆ 90km measuring range, 2.5m event dead zone

◆ Supports type C and wireless charging

◆ Pocket design, small and light, easy to carry

◆ Large-capacity battery, more than 20 hours continuous working, intelligent power-saving mode

◆ Hidden optical port design, shock-proof and drop-resistant

◆ File standard format SOR, support batch processing

◆ One-button intelligent detection, automatic data analysis

MODELS

Module Number	Wavelength(nm)	Dynamic Range(dB)	Event/Attenuation Dead Zone(m)
X100S-D24	1310/1550± 20	24/22	2.5
X100S-SF1	1310±20	24	2.5
X100S-SF2	1550±20	22	2.5
X100S-SF3	1610±20	22	2.5
X100S-SF4	1625±20	22	2.5
X100S-SF5	1650±20	22	2.5

SPECIFICATIONS

Fiber Type	G.652D
Event Dead Zone	2.5 m
Attenuation Zone	8 m
Measuring Range	100m/500m/1km/2km/5km/10km/20km/40km/60km/90km
Pulse Width	5ns/10ns/20ns/50ns/100ns/200ns/500ns/1μs/2μs/5μs/10μm
Accuracy	± (1m+Sampling interval+0.005%measuring range)
Linearity	± 0.2dB/dB
Sample Points	Maximum sampling points: 20000
Sampling Resolution	25cm~8 m
Loss Resolution	0.001dB
Range Resolution	0.001m
Refractive Index	1.0000~2.0000
Reflection Accuracy	± 3dB
File Format	Standard for file format: SOR
Safety Level	Class IIIB
Temperature/Humidity	Environment temp: - 10℃~+50℃
	Storage temp: -40℃~+70℃
	Humidity: 0~90% (non condensation)
Dimension/Weight	170 x 120 x 30mm/340g (with battery)
Battery	3.7V/4000mAh
Adapter	USB (Type C)

OTHER FUNCTIONAL MODULES

Optical Power Meter
Wavelength	800/1300/1310/1490/1550/1625/1650nm
Range	A: -70~+10dBm B: -50~+26dBm
Frequency	270Hz/330Hz/1kHz/2kHz
Uncertainty	±5%
Connector	FC/SC/ST
Laser source
Wavelength	1310/1550nm
Laser Type	FP-LD
Power	-5dBm~±2dB
Uncertainty	±5%
Connector	FC/SC/ST
Other module
VFL	≥10mW
RJ45	Line sequence / line ﬁnding
