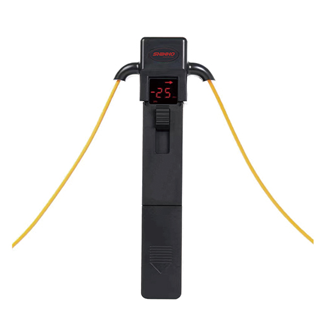

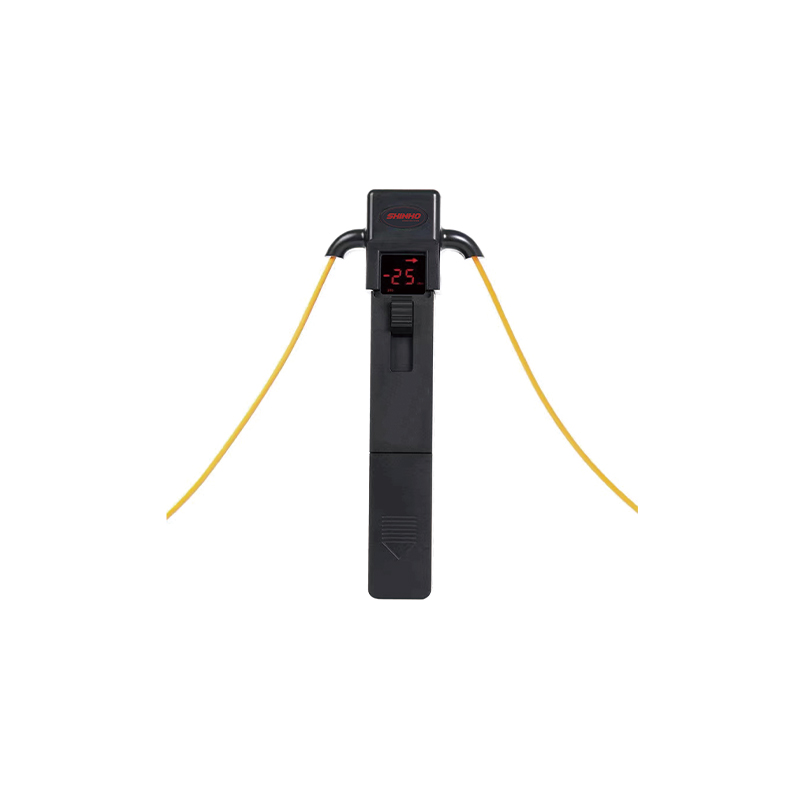

X-5004 Optical Fiber Identifier

loss High accuracy
Online fiber testing
Portable and easy to operate
Low false detection&insertion
Availability:
Quantity:
  • X-5004

  • SHINHO

Product Description


Features For X-5004  Optical Fiber Identifier



◆ Digital display relative optical power

◆ Online fiber testing

◆ Identifies 3 common test tones,270Hz,1kHz and 2kHz

◆ Identifies 3 dominant traffic direction, audible alarm

◆ Low false detection & insertion loss

◆ Low power consumption, portable and easy to operation

◆ Equipped with a hood to test more accurately outdoors

◆ Provide corresponding adapter for 250μm bare fiber, 0.9mm/2mm/3mm patch cord



SPECIFICATIONS


Identified Wavelength Range

800-1700nm

Identified Signal Type

CW, 270Hz±5%, 1kHz±5%, 2kHz±5%

Detector Type

InGaAs 2pcs

Adapter Type

Ø0.25/Ø0.9/ Ø2.0/Ø3.0

Signal Direction

Left & Right LED

Singe Direction Test Range

(dBm, CW/0.9mm Bare Fiber)

-46~10 (1310nm)

-50~10 (1550nm)

Signal Power Test Range

-50~+10 (dBm, CW/0.9mm bare fiber)

Signal Frequency Display (Hz)

270, 1k, 2k

Frequency Test Range (dBm, Average Value)

Ø0.9, Ø2.0, Ø3.0

-30~0 (270Hz,1kHz)

-25~0 (2kHz)

0.25

-25~0 (1kHz,2kHz)

-20~0 (2kHz)

Insertion Loss (dB, Typical Value)

0.8 (1310nm)

2.5 (1550nm)

Alkaline Battery

9V

Operating Temperature

-10℃~+60℃

Storage Temperature

-25℃~+75℃

Dimension/Weight

195x30x27mm/200g

Package

X-5004 fiber identifier; user manual; fifiber adapter; soft carrying bag
