Availability: | |
---|---|
Quantity: | |

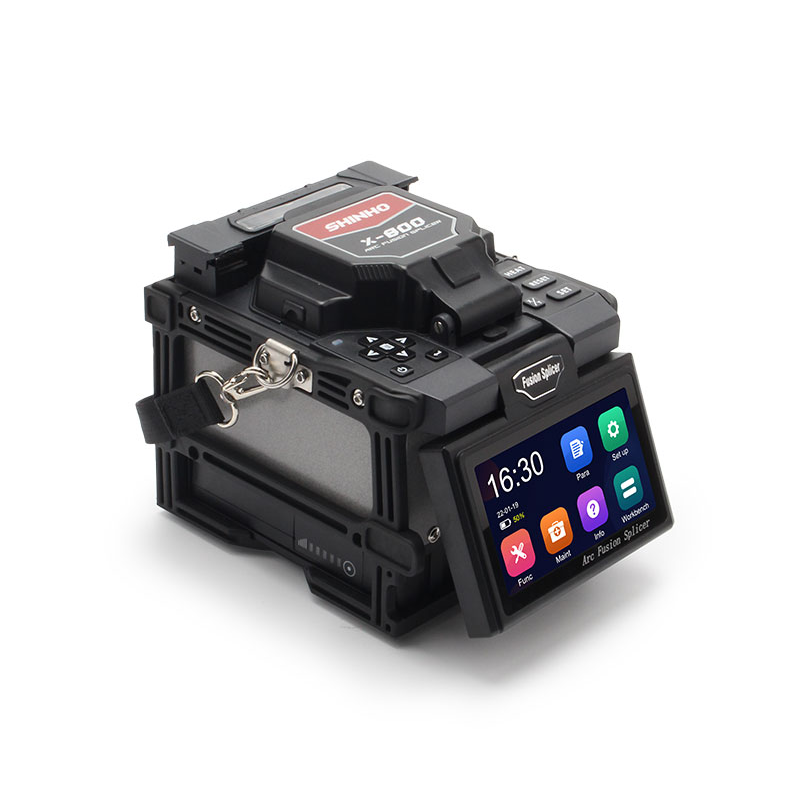

X-800
SHINHO
Product Description
Specially Designed For FTTx/FTTH Projects
◆ PAS technology for accurate fiber alignment
◆ Low splicing loss and stable performance
◆ Intelligent and automatic maintaining system
◆ 320X fiber magnification, X/Y/XY view modes available
◆ Inductive heater, also support SOC connector heating
◆ Anti-shock, drop-resistant, IP52 water-resistant and dust-resistant
◆ Multi-function Fiber holderfor bare fiber, pigtails, drop cable etc.
◆ Specially for FTTx, FTTH, CATV, MAN projects etc.
MORE INFO
>4000 times discharging
Automatic ARC calibration
Inductive automatic heater
No heating without fiber
Robust industrial design, High resolution LCD
SPECIFICATIONS
Applicable Fiber | G651/G652/G653/G655/G657 etc. |
Cladding Diameter | 80 ~150μm |
Coating Diameter | 160~3000μm |
Cleaved Length | 10~16mm (coating diameter<250μm), 16mm (coating diameter:250~1000μm) |
Typical Splice Loss | G651: 0.01dB; G652: 0.02dB; G653: 0.04dB; G655: 0.04dB; G657: 0.02dB |
Return Loss | >60dB |
Splicing Program | 40 modes |
Operation Mode | Manual/ Auto |
Auto-Heating | Available |
Splicing Time | 6~12 seconds |
Heating Time | 20~26 seconds for 40mm and 60mm shrinkable sleeves |
Fiber Magnification | 320X (X or Y view), 160X (X and Y view) |
Viewing Display | Dual high sensitivity camera, 4.3" HD color LCD touch screen |
Data Storage | 8000 groups fusion records |
Loss Evaluation | Available |
Tension Test | 1.8~2.2N |
Interface | GUI menu interface, easy for operation |
Battery Capacity | Detachable 5200mAh Li-battery , typical 250 cycles splicing and heating |
Power Supply | Adapter, input: AC100~240V (50/60Hz), output: DC11~13.5V |
Electrode Life | More than 4000 ARC discharges, easy to replace |
Terminal | USB 2.0 port, for software upgrading, records exporting |
Operating Condition | Altitude: 0~5000m; Humidity: 0~95%; Temperature: -10°C~+50°C; Max wind: 15m/s |
Dimension/Weight | 165mm(L) × 135mm(W) × 140mm(H) (including rubber bumper)/2.02kg(with battery) |
PACKAGE
Fusion Splicer
Fiber Cleaver
Drop Cable Stripper
Fiber Stripper
Power Plug
Power Adapter
Strap
Spare Electrodes
User Manual
Cooling Tray
Cleaning Brush
Carrying Case
