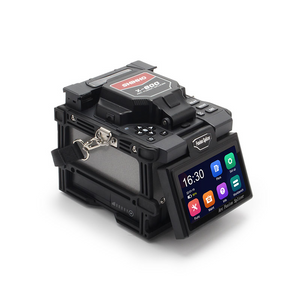

X-800 Handheld FTTx Fusion Splicer

X-900 Multi-function Fusion Splicer

Latest Blogs

How To Fusion Splice Fiber

Have you ever wondered how fiber networks stay lightning fast? Fusion splicing holds the secret — it’s the key to strong, seamless fiber links.
How To Use A Fusion Splicer

Ever wondered how fiber networks stay strong? Fusion Splicer makes seamless connections possible. It reduces signal loss and strengthens joints.
What Is A Fusion Splicer Used For

Ever wondered how fiber networks stay fast? Reliable connections need precision tools. A Fusion Splicer joins fibers with minimal signal loss.
What Are Mechanical And Fusion Splices

Fiber optic networks are the backbone of modern communication. Reliable connections are vital for fast,uninterrupted data. Fusion Splicer joins fibers with minimal signal loss.
Can A Fusion Splicer Perform OTDR

Fiber networks need precise testing. Can a Fusion Splicer perform OTDR? This article explains its limits and uses. You will learn when to use each tool, covering splicer capabilities and best practices for accurate fiber measurements.
SHINHO Wraps Up a Successful Showing at CIOE Shenzhen

September 10–12 — The 26th China International Optoelectronic Exposition (CIOE 2025) concluded at the Shenzhen World Exhibition & Convention Center. Shinho Optics Co., Ltd. made an impressive appearance with its full lineup of fiber-handling equipment and achieved excellent results at this industry
Single Fiber Vs Ribbon Fusion Splicer: Which One Do You Need?

Single Fiber vs Ribbon Fusion Splicer: Which One Do You Need?Fiber optic networks are essential for modern communication, powering everything from internet to secure data transfers. Fiber splicing is key to building these networks, and choosing the right fusion splicer can significantly impact effic
The History And Evolution of Fusion Splicing

Fusion splicing is the backbone of modern fiber optic installations, ensuring reliable, low-loss connections between fibers. From telecom networks to 5G and FTTH services, this technology is critical for performance.
Key Features To Look for in A High-Performance Fusion Splicer

Choosing the right fusion splicer can make or break your fiber optic projects. With increasing demands for speed and reliability, selecting a high-performance splicer is crucial.In this article, we’ll explore the key features to consider when selecting a fusion splicer.
Top Fusion Splicer Brands in 2025: A Comparison Guide

Top Fusion Splicer Brands in 2025: A Comparison GuideIn the fast-evolving world of fiber optics, the need for precision and speed has never been greater. As technology progresses, fusion splicers have become indispensable tools for creating flawless, low-loss connections between optical fibers.

Share to:

X-97 Handheld FTTx Fusion Splicer

Name: X-97 Handheld FTTx Fusion Splicer
Brand: SHINHO
Rating: 5.0 (70 reviews)

X-97 Fiber fusion splicer is a 4-motor fusion splicer with fiber core alignment technology, GUI menu design, upgraded CPU. It has very stable performance and low fusion loss (average loss lower than 0.03dB), it is a very economical fusion splicer and suitable for FTTx/ FTTH/ Security/ Monitoring etc. projects.

Small size, portable design
Low loss and high quality splicing
Automatic and Manual dual splicing and heating mode
Shock-resistant, drop-resistant, and adaptable to harsh environment

Availability:

Quantity:



Inquiry Download

Model:
x-97
Brand:
SHINHO

Product Description

Product Description

Specially Designed for FTTx/FTTH Projects

◆ Light weight,easy to carry

◆ Fast splicing time 7sec. / tube heating time 20 sec.

◆ Smart ARC control technology

◆ Automatic heating,automatic lid closing

◆ Full automatic fast splicing and heating

◆ Large capacity battery,over 250 cycles splicing and heating

◆ 3 in 1 fiber fixture,apply to SM, MM, bare fiber, pigtail, drop cable , multi fiber cable

◆ Suitable for FTTH entry, security monitoring and other optical fiber fusion engineering

MORE INFO

＞4000 times discharging

Automatic ARC calibration

Inductive automatic heater

No heating without fiber

Long time working battery

250 cycles splice & heat

Operating Condition

SPECIFICATIONS

Applicable Fiber	G651/G652/G653/G655/G657 etc.
Cladding Diameter	80~150μm
Coating Diameter	160~3000μm
Cleaved Length	5~16mm (coating diameter<250μm), 16mm (coating diameter:250~1000μm)
Typical Splice Loss	G651: 0.01dB; G652: 0.02dB; G653: 0.04dB; G655: 0.04dB; G657: 0.02dB
Return Loss	＞60dB
Splicing Program	40 modes
Operation Mode	Manual/ Auto
Auto-Heating	Available
Splicing Time	7~12 seconds
Heating Time	20~26 seconds for 40mm and 60mm shrinkable sleeves
Fiber Magnification	320X (X or Y view), 160X (X and Y view)
Viewing Display	Dual high sensitivity camera, 4.3" HD color LCD touch screen
Data Storage	8000 groups fusion records
Loss Evaluation	Available
Tension Test	1.8~2.2N
Interface	GUI menu interface, easy for operation
Battery Capacity	Detachable 5200mAh Li-battery, typical 250 cycles splicing and heating
Power Supply	Adapter, input: AC100~240V (50/60Hz), output: DC11~13.5V
Electrode Life	More than 4000 ARC discharges, easy to replace
Terminal	USB 2.0 port, for software upgrading, records exporting
Operating Condition	Altitude: 0~5000m; Humidity: 0~95%; Temperature: -10°C~+50°C; Max wind: 15m/s
Dimension/Weight	160mm(L) × 140mm(W) × 135mm(H) (including rubber bumper)/2.04kg(with battery)
