Availability: | |
---|---|
Quantity: | |
X-50
SHINHO
Product Description

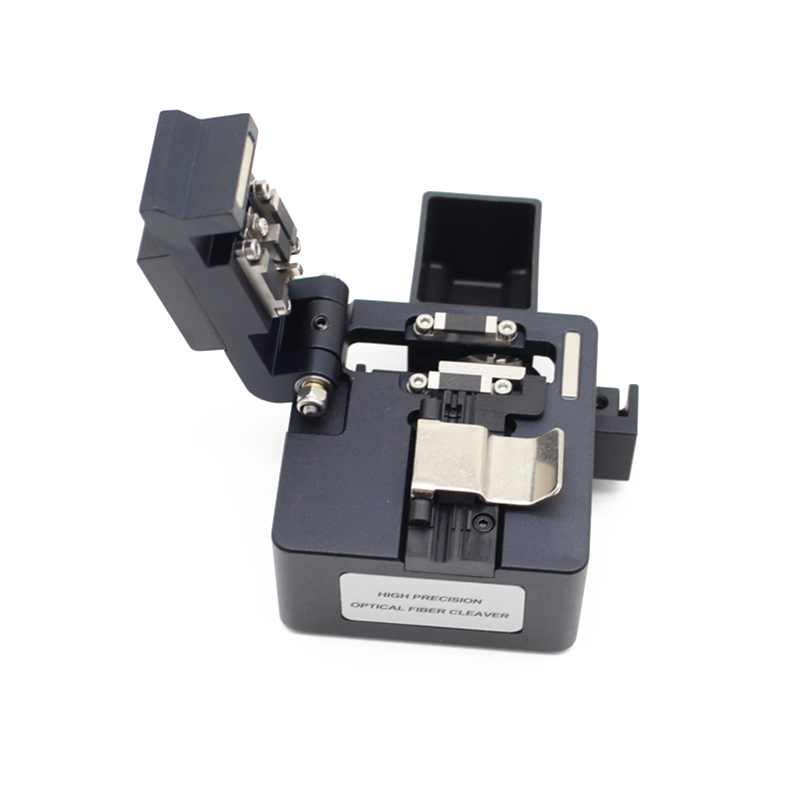

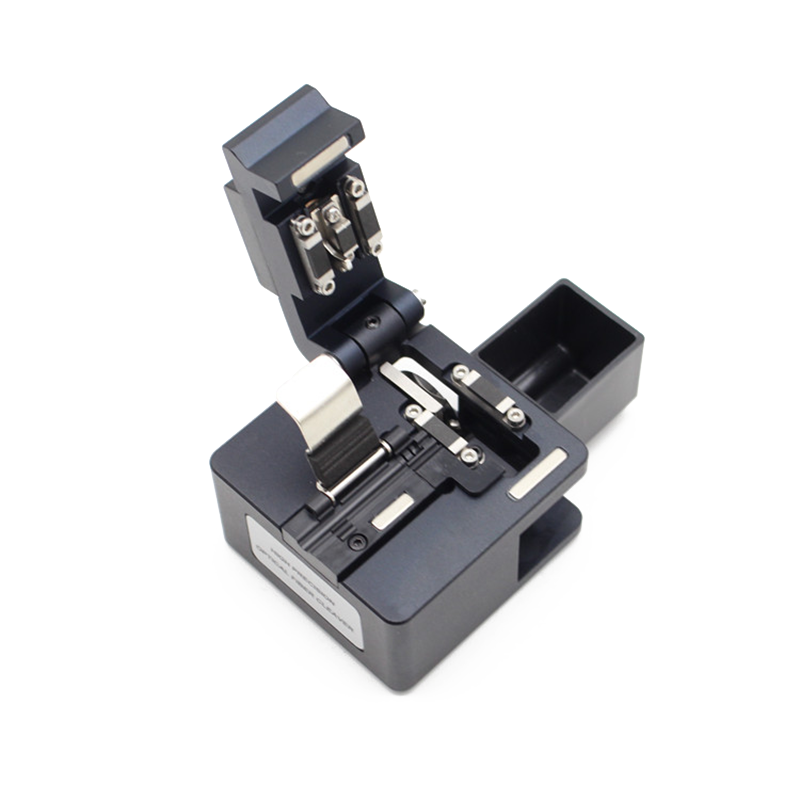

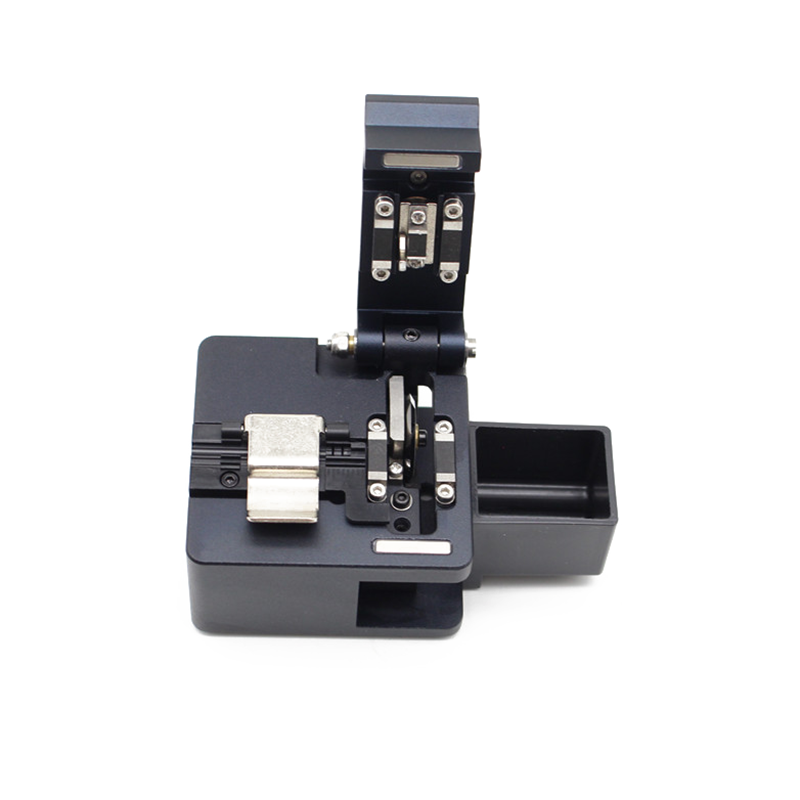

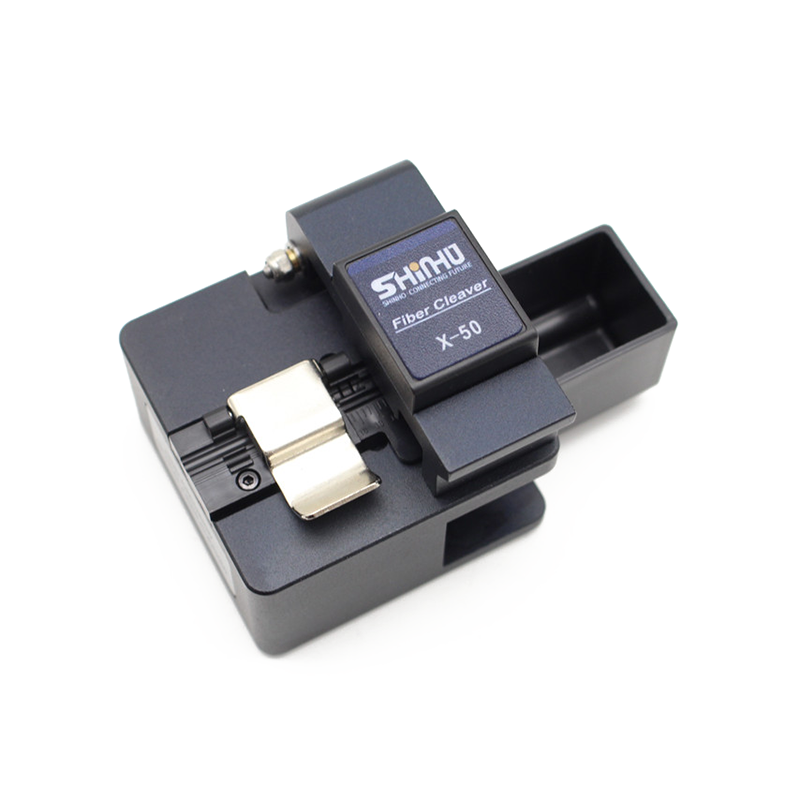

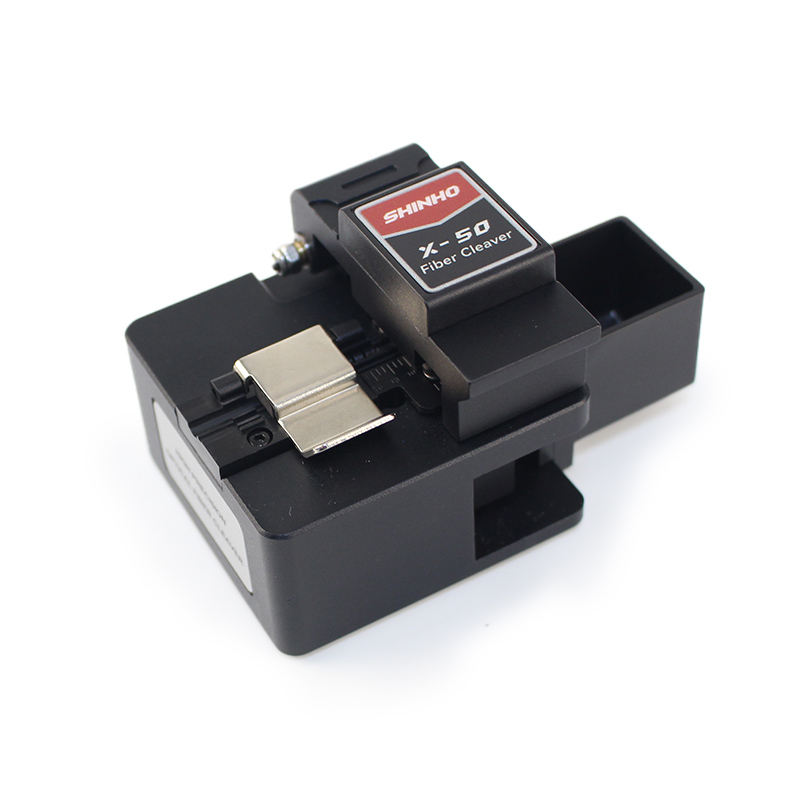

Features For X-50 High Precision Fiber Cleaver
◆ High expansibility fiber optic cleaver
◆ High hardness tungsten steel balde
◆ Capable of cutting 48000 times
◆ Three-In-One clamp with built in scales
◆ Comes with blade adjustment tool
◆ Non-slip foot pad
◆ Removable fiber trash bin
SPECIFICATIONS
Fiber Cladding Diameter | 125µm |
Fiber Coating Diameter | 160µm~3000µm |
Fiber Type | Single core fiber |
Cleaved Length | 5~16mm |
Cleaved Angle | ≤0.7° |
Blade Life | 48000 times |
Operation Mode | Manual |
Dimension | 59mm(W) x 55mm(D) x 49mm(H) |
Weight | 257(g) |

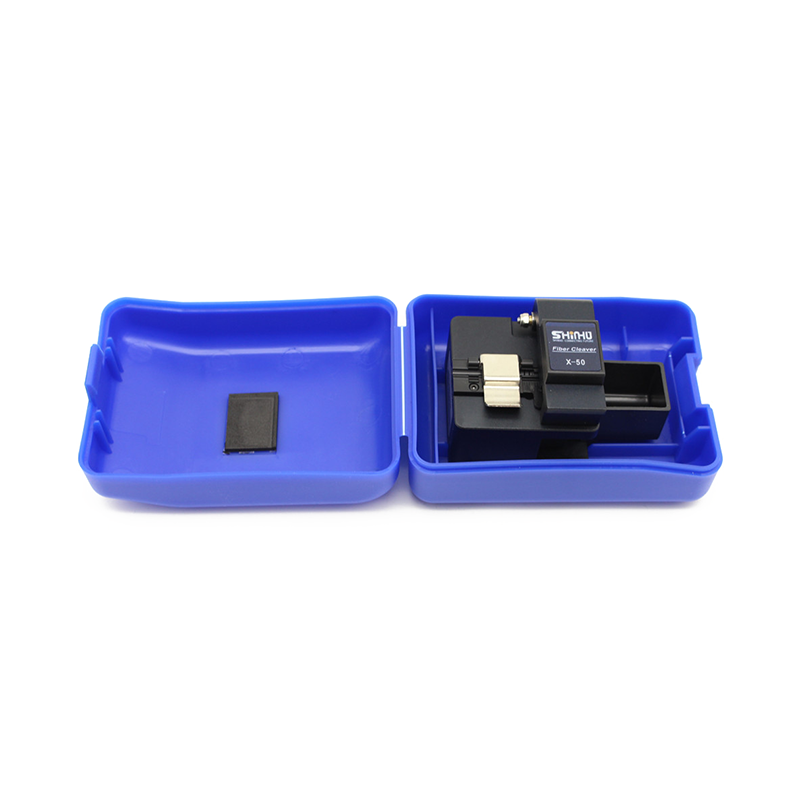

Package | X-50 fiber cleaver; collecting box; screw driver; user manual; carrying box |
VIDEO
