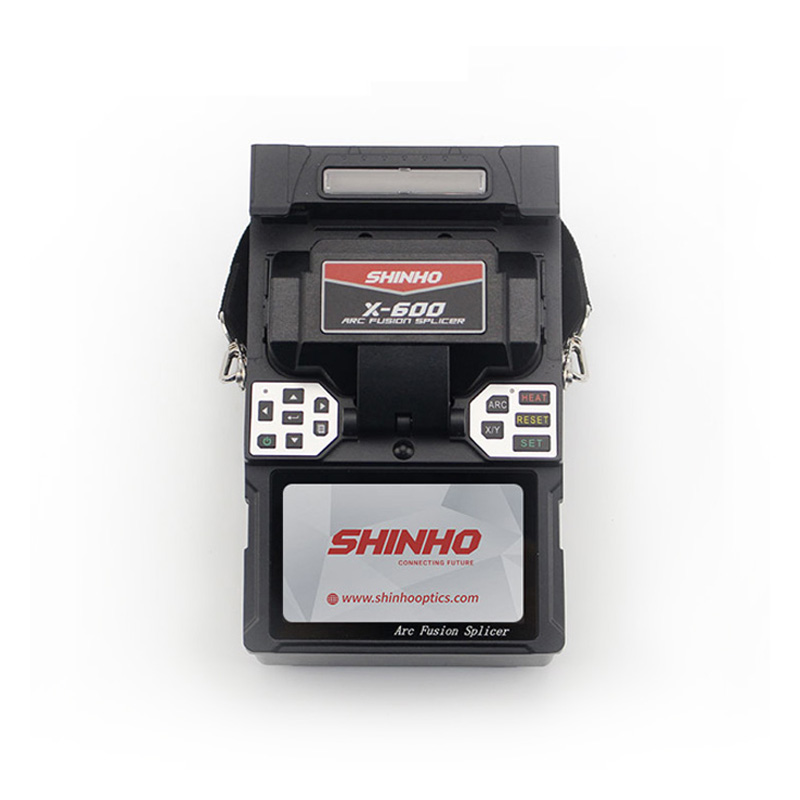

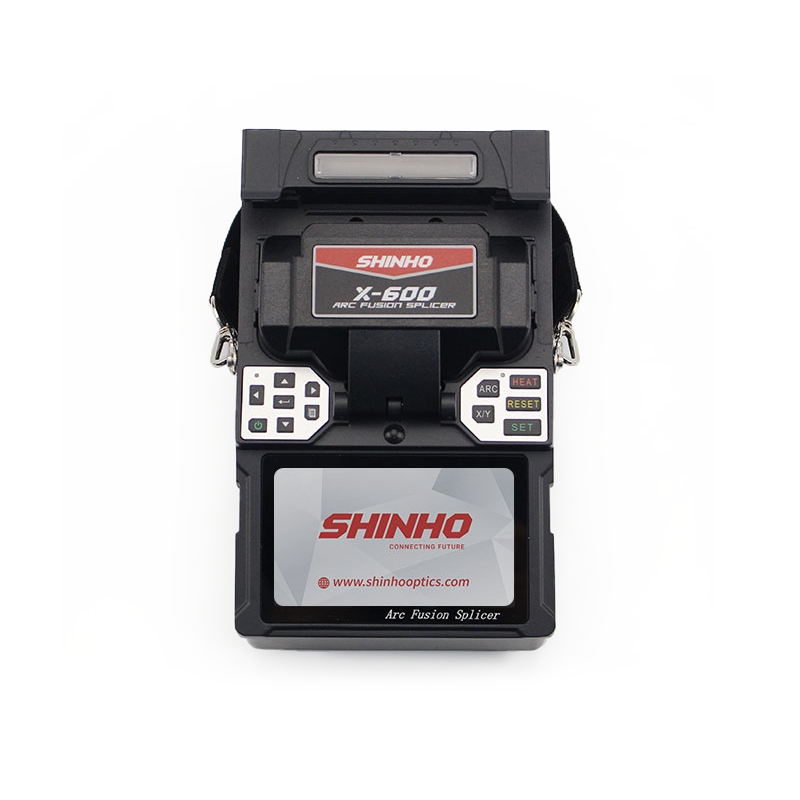

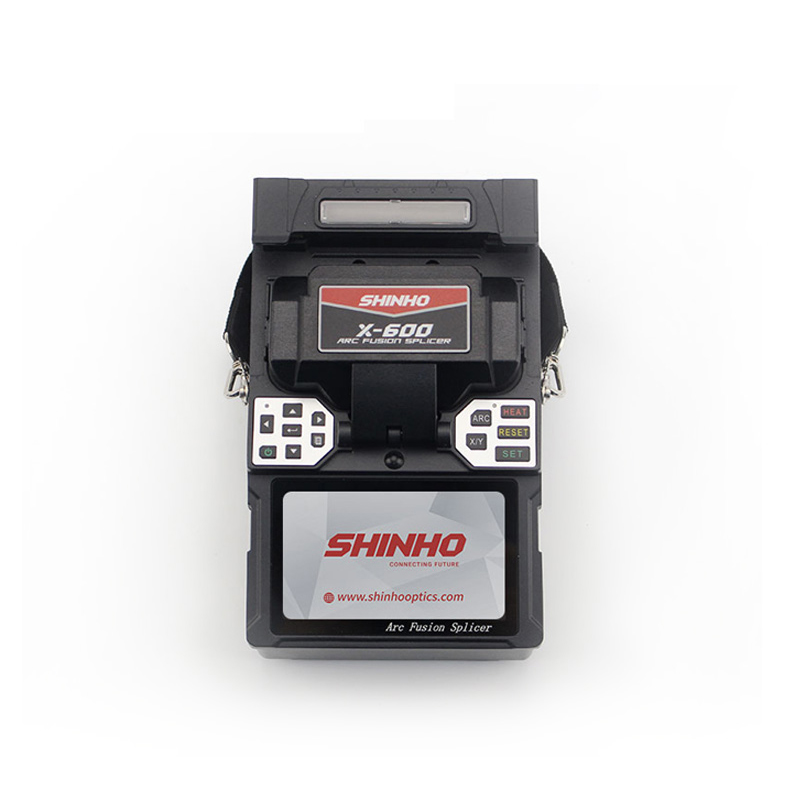

X-600
SHINHO
Product Description
MORE INFO
＞5000 times discharging
Automatic ARC calibration
Inductive automatic heater
No heating without fiber
Convenient to operate
250 cycles splice & heat
SPECIFICATIONS
Languages | 11 Language (China, English, Deutsch, Français, Turkish, Portugués, Italiano, etc) |
Alignment Method | 4 motors clad to clad alignment, active V-groove design. |
Applicable Fiber | G651/G652/G653/G654/G655/G657 etc. |
Cladding Diameter | 80~150μm |
Coating Diameter | 160~3000μm |
Cleaved Length | 5~16mm (coating diameter<250μm), 16mm (coating diameter:250~1000μm) |
Typical Splice Loss | G651: 0.01dB; G652: 0.02dB; G653: 0.04dB; G655: 0.04dB; G657: 0.02dB |
Return Loss | ＞60dB |
Splicing Program | 100 modes |
Operation Mode | Manual/ Auto |
Auto-Heating | Available |
Splicing Time | 7~11 seconds |
Heating Time | 20~26 seconds for 40mm and 60mm standard shrinkable sleeves |
Fiber Magnification | 320X (X or Y view), 160X (X and Y view) |
Viewing Display | Dual high sensitivity camera, 4.3”HD color LCD touch screen |
Data Storage | 8000 groups fusion records |
Loss Evaluation | Available |
Tension Test | 1.8～2.2N |
Interface | GUI menu interface, easy for operation |
Battery Capacity | Detachable 5200mAh Li-battery, typical 250 cycles splicing and heating |
Power Supply | Adapter, input: AC100~240V(50/60Hz), output: DC11~13.5V |
Electrode Life | More than 5000 ARC discharges, easy to replace |
Terminal | USB 2.0 port, for software upgrading, records exporting |
Operating Condition | Altitude: 0~5000m; Humidity: 0~95%; Temperature: -10°C~+50°C; Max wind: 15m/s |
Storage Condition | Temperature: -40°C~+80°C |
Dimension/Weight | 200mm(L)×123mm(W)×95mm(H)/1.66kg (with battery) |
PACKAGE
Fusion Splicer

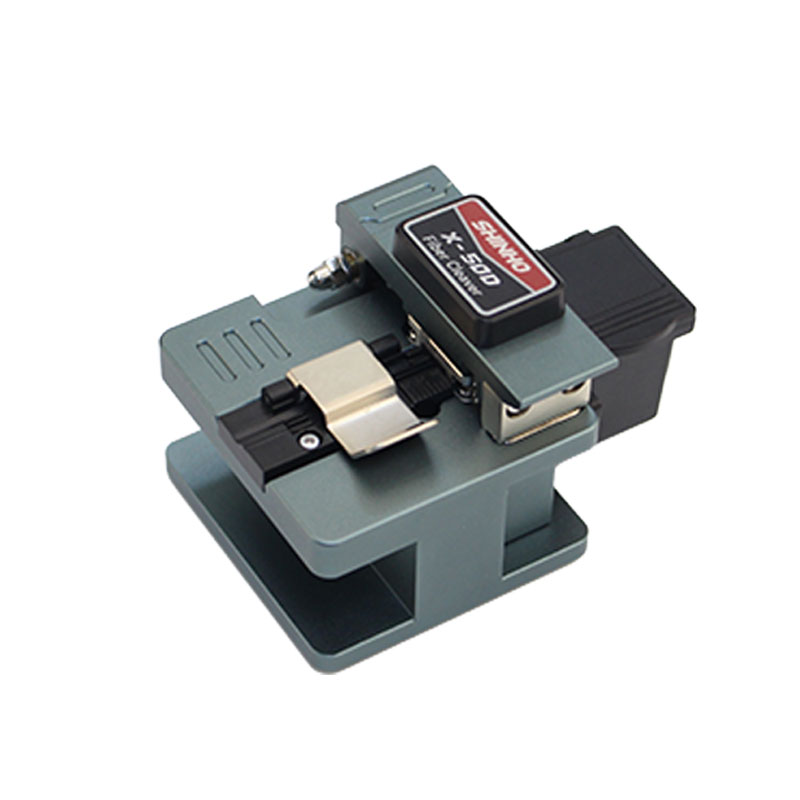

Fiber Cleaver
Drop Cable Stripper

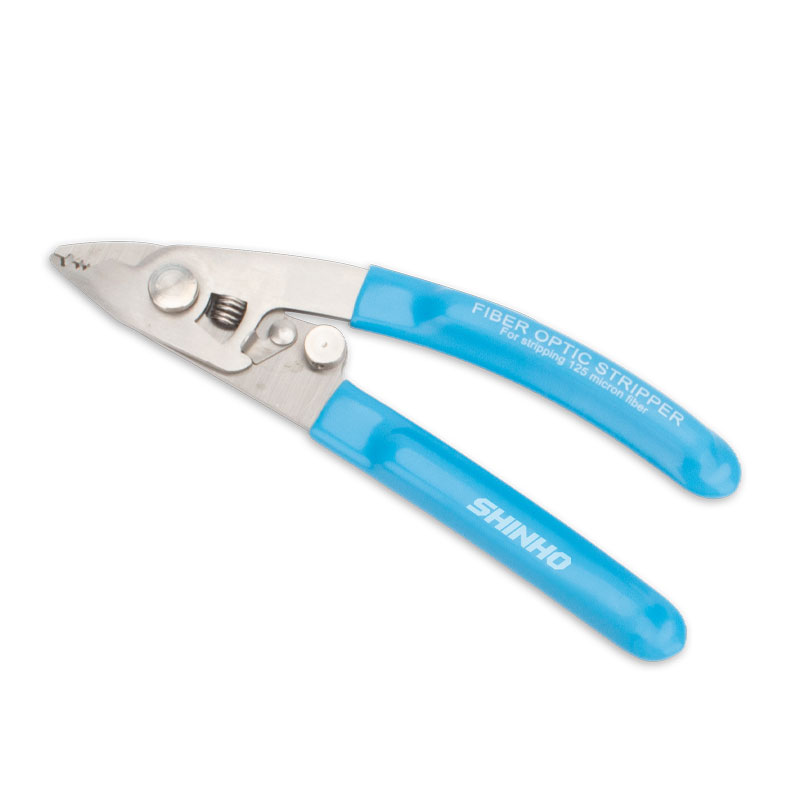

Fiber Stripper
Power Plug

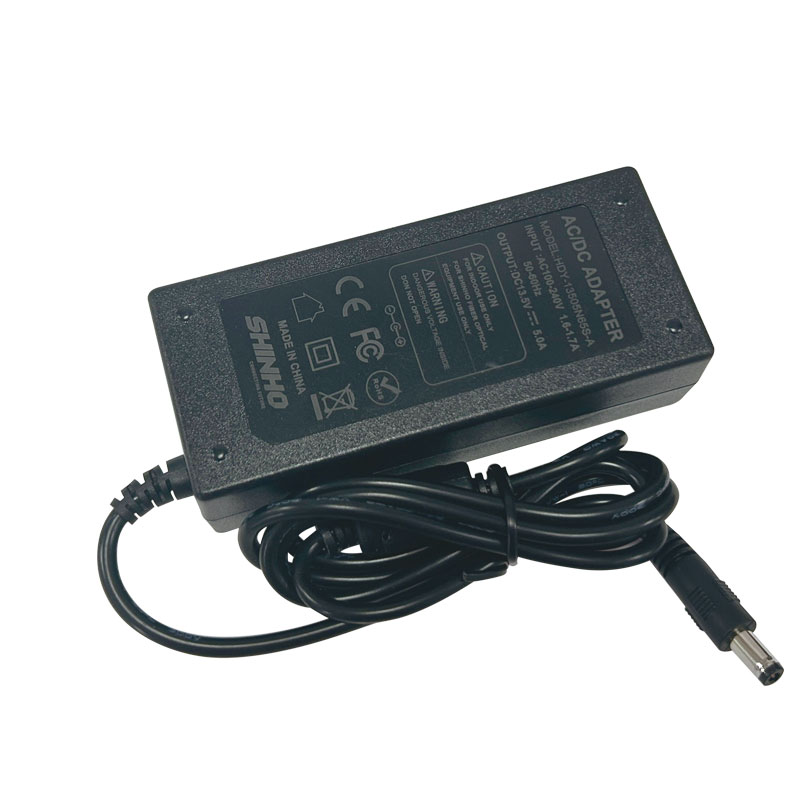

Power Adapter

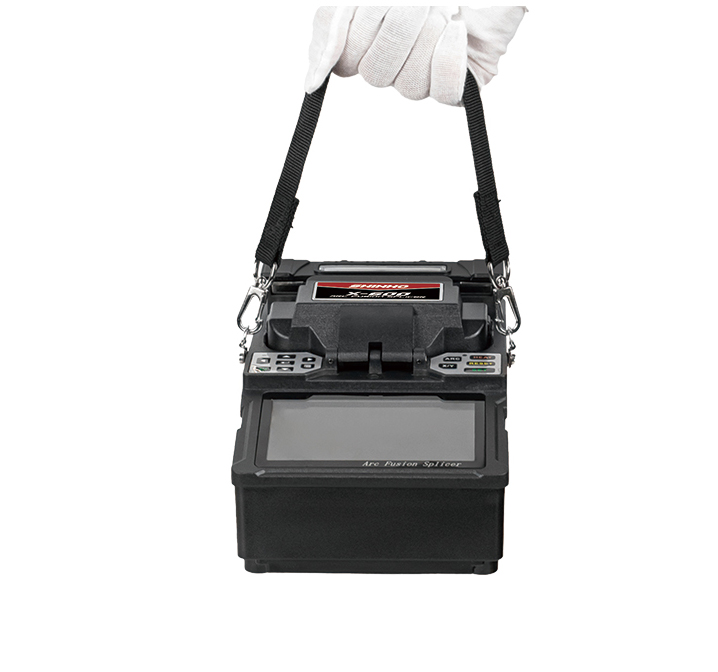

Strap

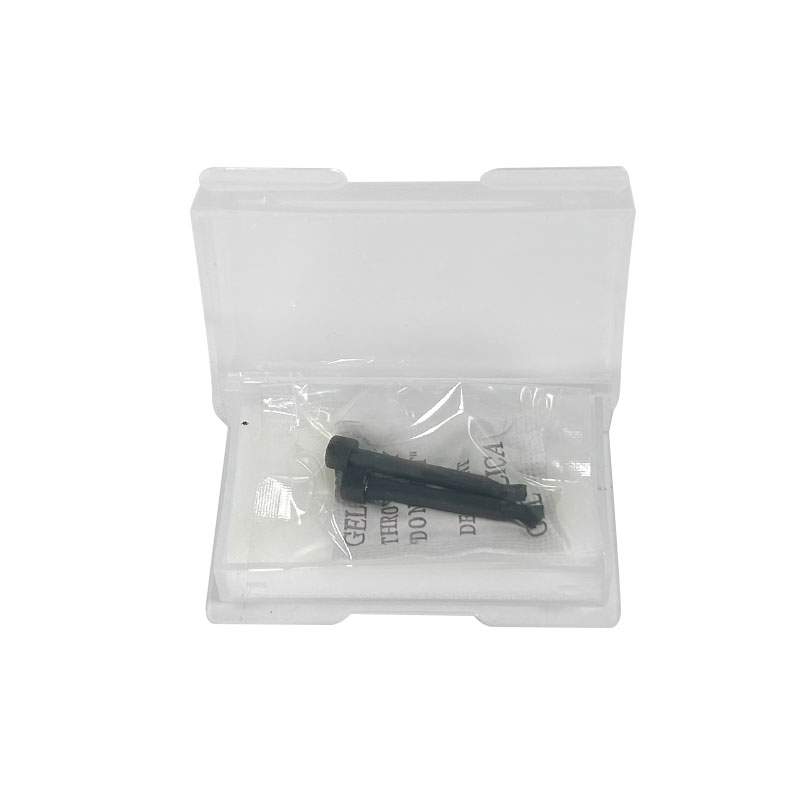

Spare Electrodes
User Manual
Cooling Tray
Cleaning Brush
Carrying Case
