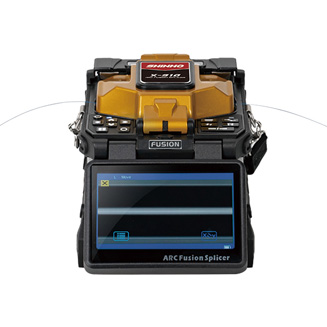

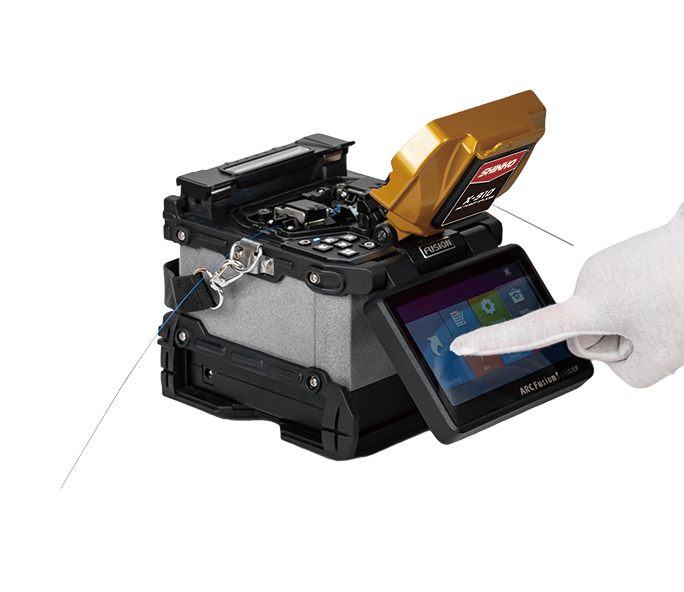

X-910 Multi-function Fusion Splicer

X-910 Fiber fusion splicer is a 6-motor fusion splicer with the latest fiber core to core alignment technology, it has very stable performance and low fusion loss, it is suitable for different fiber optical projects , including backbone, FTTx etc.

Support preheating mode
Battery charging separately
Real 6 motor core alignment
Large capacity battery 5200mAh
Availability:
Quantity:
  • X-910

  • SHINHO

Product Description

banner1


6 Motor Core to Core Alignment


◆ High quality splicer with Classic color scheme
◆ Six motors core alignment system with automatical focusing
◆ Auto splicing with fast working speed.
◆ A variety of spares to support your work
◆ Robust Armour to proect the machine body.
◆ 5' inch large screen with high resolution display
◆ Faster heating speed and uniform heating area
◆ Smart aligning system brings lower splice loss
◆ High quality cell battery support 300 types splicing and heating


MORE INFO

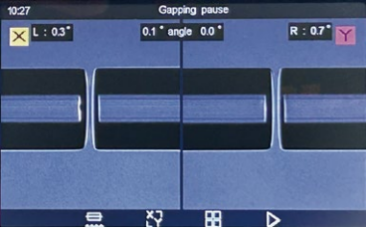

Precise structural design Core to core alignment

Large capacity Li-battery

Support separate charging

Anti-shock, dust-proof and water-proof, 5" touch LCD



Multi-Language Sites


未标题-1


SPECIFICATIONS


Alignment Method

6 motors core to core alignment

Applicable Fiber

G651/G652/G653/G654/G655/G657 etc.

Cladding Diameter

80~150μm

Coating Diameter

160~3000μm

Cleaved Length

10-16mm (coating diameter<250μm), 16mm (coating diameter:250~1000μm)

Typical Splice Loss

G651: 0.01dB; G652: 0.02dB; G653: 0.04dB; G654: 0.04dB; G655: 0.04dB; G657: 0.02dB

Return Loss

>60dB

Splicing Program

40 modes

Operation Mode

Manual/ Auto

Auto-Heating

Available

Splicing Time

6~12 seconds

Heating Time

18~26 seconds for 40mm and 60mm shrinkable sleeves

Fiber Magnification

400X (X or Y view), 200X (X and Y view)

Viewing Display

Dual high sensitivity camera, 5" HD color LCD touch screen

Data Storage

10000 groups fusion records, 100 groups images

Loss Evaluation

Available

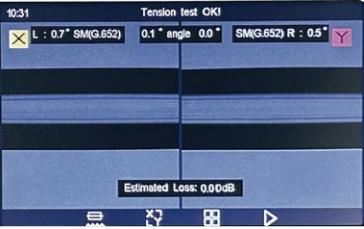

Tension Test

1.8~2.2N

Interface

GUI menu interface, easy for operation

Battery Capacity

Detachable 5200mAh Li-battery, typical 300 cycles splicing and heating

Power Supply

Adapter, input: AC100~240V (50/60Hz), output: DC11~13.5V

Electrode Life

5000 ARC discharges, easy to replace

Terminal

USB 2.0 port, for software upgrading, records exporting

Operating Condition

Altitude: 0~5000m; Humidity: 0~95%; Temperature: -10°C~+50°C; Max wind: 15m/s

Dimension/Weight

155mm(L) × 144mm(W) × 155mm(H) (including rubber bumper)/2.35kg(with battery)


PACKAGE


Fusion Splicer

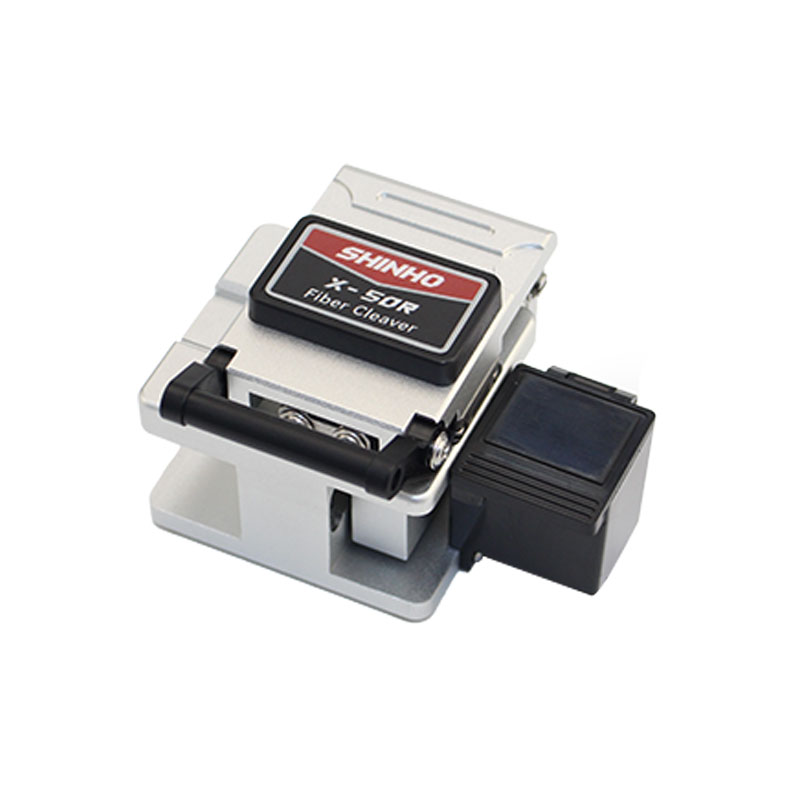

Fiber cleaver

Fiber Cleaver

Drop Cable Stripper

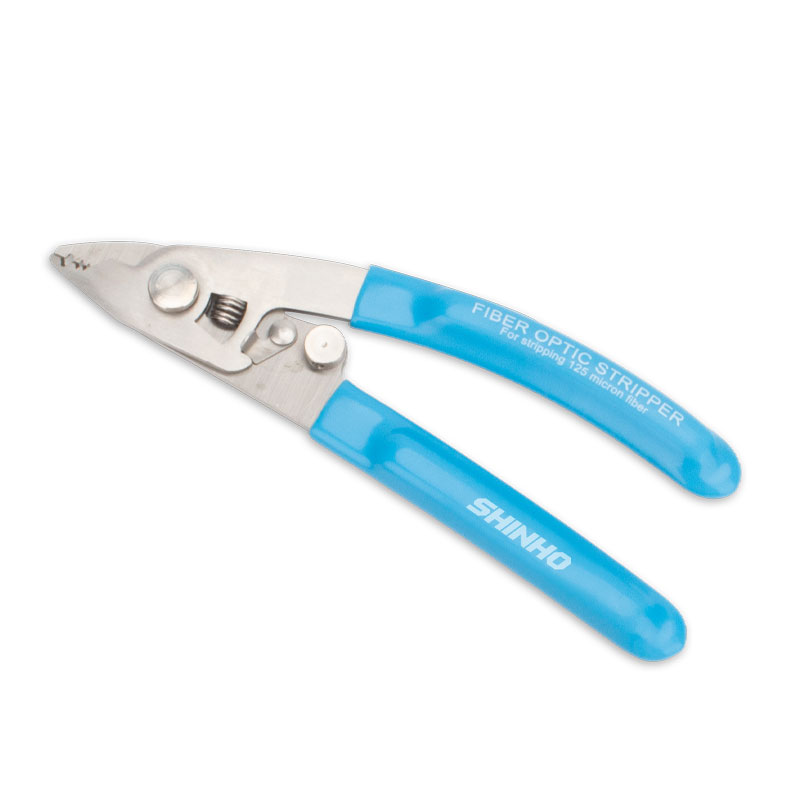

Fiber Stripper

Power Plug

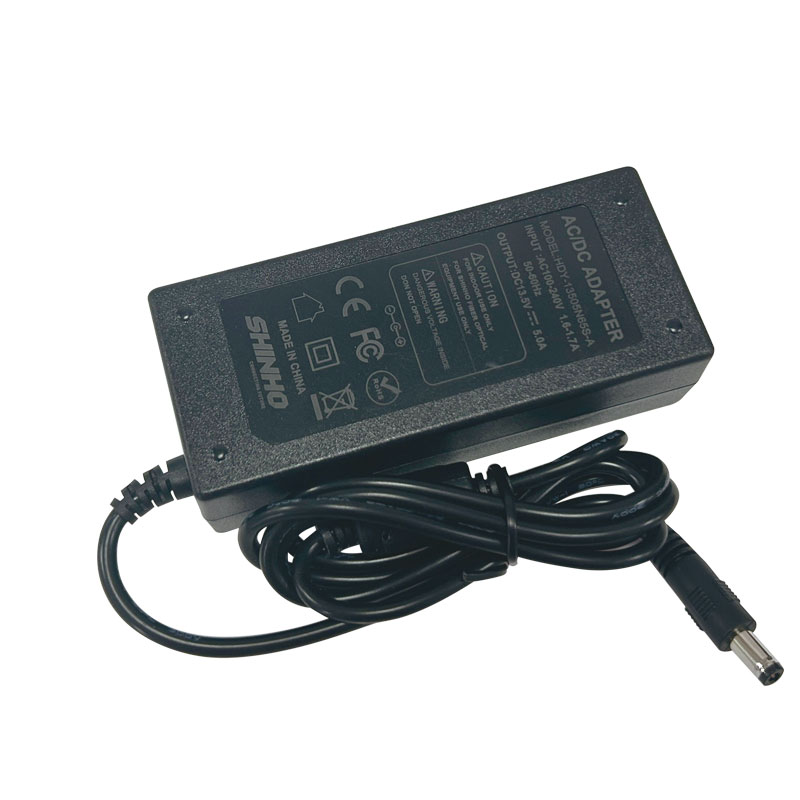

Power Adapter

Strap

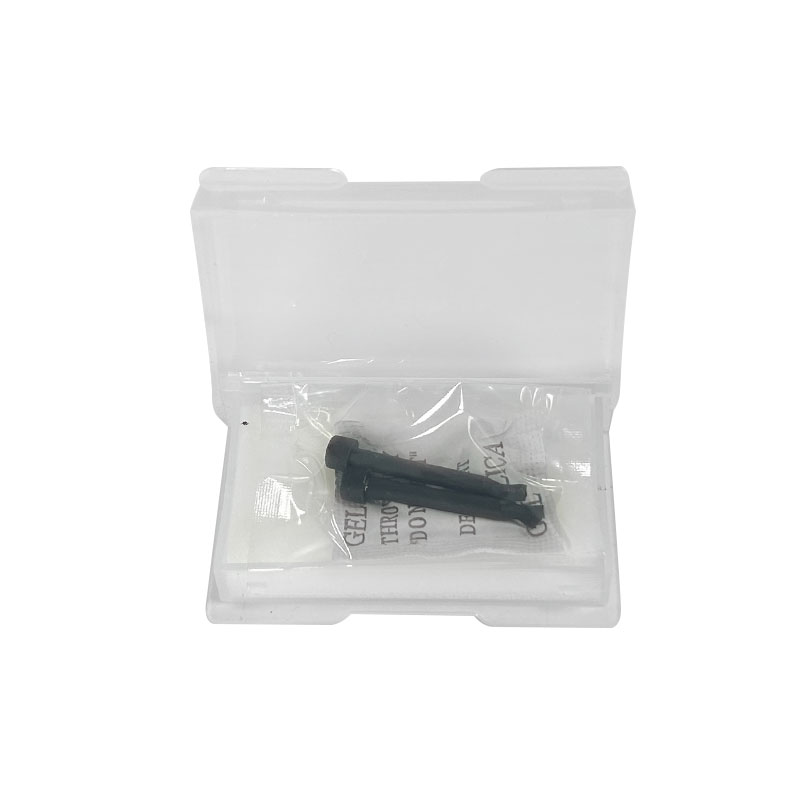

Spare Electrodes

User Manual

Cooling Tray

Cleaning Brush

Carrying Case

VIDEO



FAQ

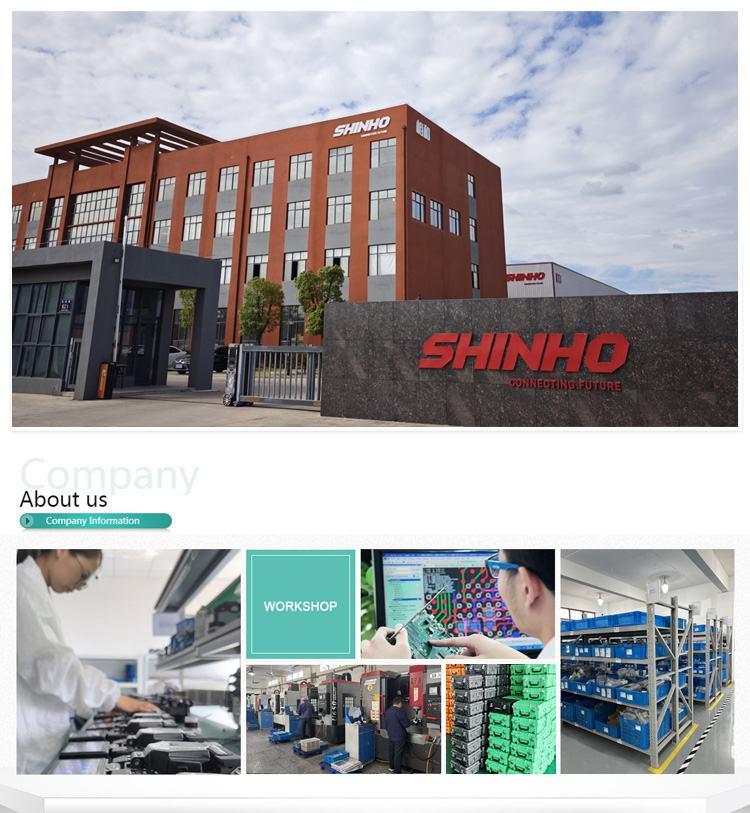

1. Why Choose Xianghe?

----Xianghe is founded in 2012 by a team of engineers with 20 year's experience in this industry. We focus on the manufacturing of fusion splicer and the quality since beginning.The software and hardware are all designed and implemented at our own plant. We have professional production line and staff who are making nice quality in short time.

banner


未标题-5

2. What Certificate you have?

-----CE,Rohs, and ISO.

fusion splicer ces


3. What is the warranty?

----- 3 Years from the date from you received the splicer.


4.Is there any discount for the splicer?

-----Yes, the price depends on the quantity, please contact us for details.


5. What should I do if I have a problem with the machine?

-----When you have problem, please share video or photo to us, we will guide you how to solve the problem. Usually most problem could be solved via remote guidance or software upgrading. We are experienced in this.


6. How to be your distributor?

-----We welcome customers to be our distributor. We will give you full support. Contact us if you are interested.
