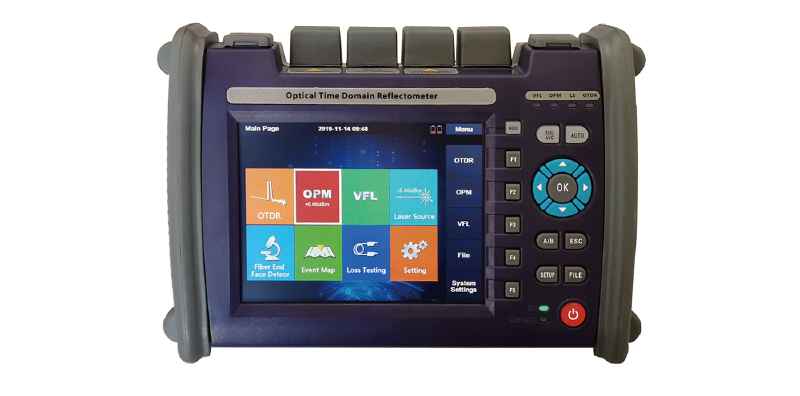

X-2100
SHINHO
Product Description
FEATURES
◆ Various wavelength and dynamic ranges are available
◆ Maximum sampling resolution: 5cm
◆ With VFL, power meter, laser source, event map,etc.
◆ User friendly GUI design, easy to operate
◆ Excellent for short-range measurement, Dead zone: 0.8m/4m
◆ Touch-sensitive and solid physical button work together for perfect user experience
◆ Support multiple analysis functions on testing results: segment return loss, event point return loss, multi curves comparison, quick screen shots
APPLICATIONS
◆ CATV network testing
◆ Access network testing
◆ LAN/WAN network testing
◆ Metro network testing
◆ Lab and factory testing
◆ Real-time trouble shooting
GENERAL SPECIFICATIONS
Display | 5.6 inch TFT-LCD (touch screen ) 640 × 480 |
Battery | 7.4V/2500mAh lithium battery×2, Continuously test: 8 hrs (back light off), Charging time: 3 hrs |
Power Adapter | Power supply: input: 100~250V AC, 50-60 Hz, 3A max; Output: 12 V DC; Power: 35W |
Data Storage | 16G SD card, 100,000 groups of data |
Interface | USB A Type×1, Micro-USB×1 |
Working Temp | -10℃~+50℃ |
Storage Temp | -20℃~+70℃ |
Humidity | ≤95% (non-condensation) |
Dimension | 215×155×68mm / 1.1kg (with battery) |
Package | X-2100 OTDR; power cord; power adapter; FC, SC adapter; Lithium battery; USB cable; SD card; user guide; carrying bag; wrist belt; touch screen pen |
TECHNICAL SPECIFICATIONS
Pulse Width | 3ns/5ns/10ns/20ns/50ns/100ns/200ns/500ns/1μs/2μs/5μs/10μs/20μs |
Testing Distance | 500m/1km/2km/5km/10km/20km/40km/80km/120km/200km/240km |
Sampling Resolution | Minimum 5cm |
Sampling Point | Maximum 256,000 points |
Linearity | ≤0.05dB/dB |
Scale Indication | X axis: 4~70m/div, Y axis: 0.09~5dB/div |
Loss Threshold | 0.01dB |
Loss Resolution | 0.001dB |
Distance Resolution | 0.01m |
Distance Accuracy | ± (1m+measuring distance×3×10-5+sampling resolution) (excluding IOR uncertainty) |
Refractive Setting | 1.2000~1.5999, 0.0001 step |
OTHER FUNCTIONAL MODULES
Module | Parameter | Note |
VFL | 1-20mW | 10mW in default |
OPM | Option A: -70dBm~+10dBm; Option B: -50dBm~+23dBm | Option A in default |
Laser Source | Output: -5dBm±2dB, Frequency: CW/270Hz/1KHz/2KHz |
MODELS
Module | Wavelength(nm) | Dynamic Range(dB) | Event/Attenuation Dead Zone(m) |
X-2100-S-A28 | 1310/1550 | 28/26 | 0.8/4 |
X-2100-S-A32 | 1310/1550 | 32/30 | 0.8/4 |
X-2100-S-A35 | 1310/1550 | 35/33 | 0.8/4 |
X-2100-S-A37 | 1310/1550 | 37/35 | 0.8/4 |
X-2100-S-A40 | 1310/1550 | 40/38 | 0.8/4 |
X-2100-S-A42 | 1310/1550 | 42/40 | 0.8/4 |
X-2100-S-B28 | 1625 | 28 | 0.8/4 |
X-2100-S-B32 | 1625 | 32 | 0.8/4 |
X-2100-S-B35 | 1625 | 35 | 0.8/4 |
X-2100-S-B38 | 1625 | 38 | 0.8/4 |
X-2100-S-C26 | 1650 | 26 | 0.8/4 |
X-2100-S-C32 | 1650 | 32 | 0.8/4 |
X-2100-S-C35 | 1650 | 35 | 0.8/4 |
X-2100-S-C38 | 1650 | 38 | 0.8/4 |
X-2100-S-AB32 | 1310/1550/1625 | 32/30/30 | 0.8/4 |
X-2100-S-AB35 | 1310/1550/1625 | 35/33/32 | 0.8/4 |
X-2100-S-AB37 | 1310/1550/1625 | 37/35/34 | 0.8/4 |
X-2100-S-AB40 | 1310/1550/1625 | 40/38/37 | 0.8/4 |
X-2100-S-AB42 | 1310/1550/1625 | 42/40/38 | 0.8/4 |
X-2100-S-AC32 | 1310/1550/1650 | 32/30/30 | 0.8/4 |
X-2100-S-AC35 | 1310/1550/1650 | 35/33/32 | 0.8/4 |
X-2100-S-AC37 | 1310/1550/1650 | 37/35/35 | 0.8/4 |
X-2100-S-AC40 | 1310/1550/1650 | 40/38/37 | 0.8/4 |
X-2100-S-AC42 | 1310/1550/1650 | 42/40/38 | 0.8/4 |
X-2100-M26 | 850/1300 | 22/26 | 1.2/5 |
X-2100-SM32 | 850/1300/1310/1550 | 22/26/32/30 | SM:0.8/4 MM:1.2/5 |
X-2100-SM35 | 850/1300/1310/1550 | 22/26/35/33 | SM:0.8/4 MM:1.2/5 |
X-2100-SM40 | 850/1300/1310/1550 | 22/26/40/38 | SM:0.8/4 MM:1.2/5 |
X-2100-S-AP35 | 1310/1490/1550 | 35/33/33 | 0.8/4 |
