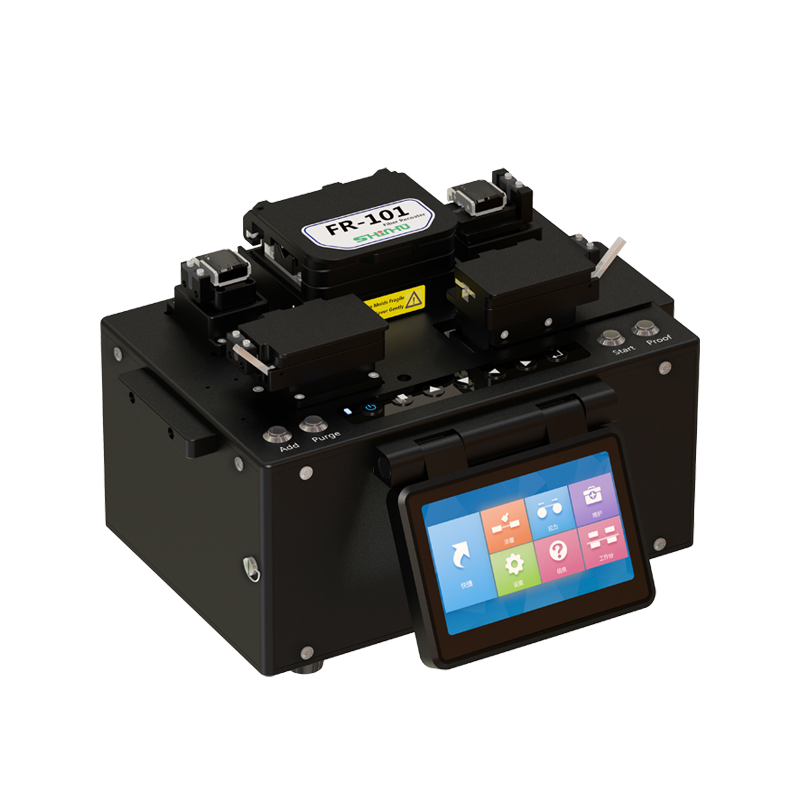

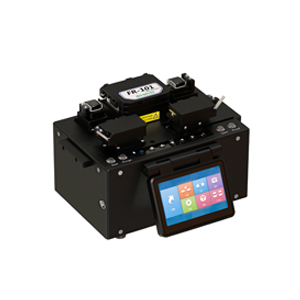

FR100 Optical Fiber Recoater

Automatic UV resin injection
Clear observation of resin injection
Automatic UV resin tube cleaning
Proof testing function optional
Availability:
Quantity:
  • FR-100

  • SHINHO

Product Description


Specially Designed For FR-100 Optical Fiber Recoater



◆ Automatic operation with various sizes of quartz molds available

◆ UV curing LEDs provide fast curing times and long lifetimes

◆ Easily exchangeable molds, resin bottle and pump assemblies

◆ Exact volume of resin to the mold cavity to ensure consistent recoat performance.

◆ Designed for Acrylate-Coated Fibers



SPECIFICATIONS


Model Number

FR-100

FR-101

Applicable Fiber Count

Single fiber

Mold Material

Quartz glass

Recoat Diameters

195μm, 280μm, 450μm, 600μm, 850μm,1000μm

Recoat Length

4 - 50mm , accuracy ±20%

Applied UV Resin

Acrylate

Curing Lamp

Up and down 2 directions, Irradiation position, irradiation time

UV Light Curing Time

UV resin injecting time: 20s; Curing time: 4s ; Recoat length: 20mm; DSM950-200

(Test environment temperature: 25℃)

Coating Program

35 modes


Proof Program

40 modes


Other

LED auxiliary lighting, easy to observe the glue level.The coating mold is replaced by the customer

The coating mold is replaced by the customer

Data Storage

1000 records in total

Proof - tester

/

0.2~2.0kgf

Power Supply

Adapter: AC100~ 240 V ; 50 /60Hz ; DC11~13.5V , 5A

Dimension/Weight

250(W)*170(L)*176(H)/4.3kg

250(W)*170(L)*170(H)/4.8Kg


ACCESSORIES


Description

Model Number

Quantities

Fiber recoater mainbody

FR-100/FR-101

1 pc

Mold

FR100-MOLD-280 (Optional)

1 set

Power cord

ACC-97

1 pc

AC adapter

ADC-97

1 pc

USB manual

/

1 pc

Tools

HEX-01/02/03

1 set(M3/M2.5/M2)

Quick operation manual

/

PDF file in USB

Instruction

FR100-QRG-100

1 pc

Carton

X41F

1 pc (440x380x270mm)

Foam liner

/

1 pc


Optional Modes


Description

Model Number

Remarks

195μm mode

FR100-MOLD-195

Recoat diameter: 195μm ; Recoat length: 50mm

255μm mode

FR100-MOLD-255

Recoat diameter: 255μm ; Recoat length: 50mm

280μm mode

FR100-MOLD-280

Recoat diameter: 280μm ; Recoat length: 50mm

320μm mode

FR100-MOLD-320

Recoat diameter: 320μm ; Recoat length: 50mm

450μm mode

FR100-MOLD-450

Recoat diameter: 450μm ; Recoat length: 50mm

600μm mode

FR100-MOLD-600

Recoat diameter: 600μm ; Recoat length: 50mm

670μm mode

FR100-MOLD-670

Recoat diameter: 670μm ; Recoat length: 50mm

850μm mode

FR100-MOLD-850

Recoat diameter: 850μm ; Recoat length: 50mm

1000μm mode

FR100-MOLD-1000

Recoat diameter: 1000μm ; Recoat length: 50mm

UV resin bottle

FR100-BTL-01

UV resin bottle

Peristaltic pump components

FR100-PUMP-01

Peristaltic pump ; Peristaltic pump tube ;

Peristaltic pump head
