Views: 0 Author: Site Editor Publish Time: 2025-10-21 Origin: Site
Fiber networks need precise testing. Can a Fusion Splicer perform OTDR? This article explains its limits and uses. You will learn when to use each tool, covering splicer capabilities and best practices for accurate fiber measurements.

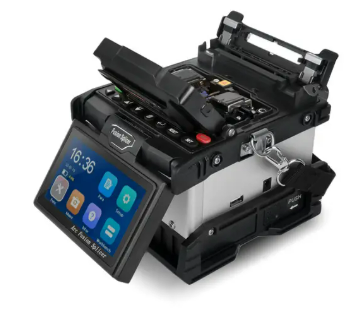

Fusion splicers join two optical fibers by heating and fusing their ends together. This method ensures minimal signal loss and maintains signal integrity. They provide real-time splice quality estimation, which allows technicians to assess performance instantly. Fusion splicers are indispensable for long-haul fiber networks, offering precision that mechanical splicing cannot match.
Modern fusion splicers often include Local Injection and Detection (LID) functions. This feature estimates splice attenuation immediately after fusion. While convenient, LID measurements are limited compared to full OTDR analysis. They provide single-point loss data but cannot generate a complete fiber trace.
Table 1: Fusion Splicer Built-In Features vs OTDR
Feature | Fusion Splicer | OTDR | Notes |
Splice Loss Estimation | Yes | Yes | Splicer gives instant feedback |
Full Fiber Trace | No | Yes | OTDR can map entire fiber length |
Fault Localization | No | Yes | Splicer limited to splice points |
Field Usability | High | Moderate | Portable for outdoor operations |
Fusion splicers provide immediate feedback on splice quality. This saves time during field operations by identifying problematic splices early. Technicians can reduce troubleshooting steps and improve efficiency. Their real-time estimates help prevent prolonged network downtime.
Despite these advantages, a splicer cannot replace OTDR for full network diagnostics. It cannot produce detailed fiber traces or evaluate long-distance or complex networks. Single-point measurements may miss cumulative losses, bends, or faults beyond the splice. For comprehensive testing, a fusion splicer must be paired with OTDR verification.
OTDR devices measure fiber performance by sending light pulses along the fiber and analyzing backscatter and reflections. This process creates a detailed trace, allowing technicians to locate faults and measure splice losses. OTDR traces show all events, including connectors, splices, and fiber defects, with precise distance markers.
While sources and power meters measure end-to-end loss, OTDR provides localized insights. OTDR traces can detect individual splice loss and pinpoint faults. This capability is crucial for network certification and troubleshooting. Source and power meters remain valuable for overall link validation but lack diagnostic detail.
OTDR allows full-link performance analysis. Technicians can locate faults, verify splices, and ensure standard compliance. Its visual trace enables better decision-making for network maintenance. OTDR testing is essential for both short and long-haul deployments, providing comprehensive insight into fiber health.
OTDR struggles with short cables due to limited resolution. Interpreting traces requires expertise and can be complex. For instant, single-splice feedback, it is less convenient than fusion splicer LID features. Despite these limitations, OTDR remains the gold standard for network testing.
Fusion splicer LID and OTDR measure attenuation, but at different levels. LID evaluates only the splice, while OTDR provides full trace analysis. Both tools complement each other in the field. Combining them ensures accurate, reliable results.
Splicers can provide preliminary loss estimates before OTDR testing. This allows for quick decision-making in field scenarios. Estimating splice quality early reduces the need for multiple OTDR passes, saving time and resources.
Table 2: Fusion Splicer vs OTDR Use Cases
Scenario | Recommended Tool | Purpose |
Quick field check | Fusion Splicer | Instant splice quality assessment |
Full network certification | OTDR | Complete fiber trace and fault detection |
Emergency repair | Fusion Splicer + OTDR | Validate splice, then confirm accuracy |
Long-haul fiber analysis | OTDR | Detect cumulative losses and faults |
The primary difference lies in measurement scope. Fusion splicers offer point measurements with moderate precision. OTDR delivers full-link analysis with higher accuracy. Selecting the right tool depends on network requirements and operational constraints.
For short patch cables or emergency repairs, splicer measurements suffice. For structured networks or certification, OTDR is necessary. Combining both tools optimizes efficiency without sacrificing accuracy. Field technicians often alternate between the two based on situational demands.
1. Prepare fibers by cleaning and stripping jackets carefully.
2. Cleave fiber precisely for minimal loss.
3. Use fusion splicer LID features to estimate immediate splice quality.
4. Verify results with OTDR for full trace accuracy.
Launch and receive cables improve measurement reliability. Choosing the right pulse width enhances trace resolution. Bidirectional testing provides more accurate results. Proper interpretation ensures precise splice evaluation.
Pre-test with a splicer to detect major issues. Confirm results with OTDR for detailed validation. This reduces rework, troubleshooting time, and ensures compliance with network standards.
Do not interpret splicer LID as OTDR results. Skipping bidirectional OTDR testing may yield inaccurate splice loss. Environmental factors, such as temperature or vibration, can affect readings. Following standard procedures ensures consistent results.
Accurate core alignment is critical for minimizing splice loss and ensuring optimal signal transmission. Precision alignment affects not only immediate LID readings but also the accuracy of subsequent OTDR verification. High-quality fusion splicers maintain consistent alignment even under challenging field conditions, reducing the risk of rework and network downtime. Reliable core alignment directly impacts network performance and ensures long-term signal integrity across both short and long-haul fiber links.
Built-in loss estimation provides real-time feedback to technicians, allowing immediate correction of suboptimal splices. Although these measurements are not as comprehensive as OTDR traces, they significantly reduce the time needed for initial troubleshooting. Accurate LID readings help identify potential issues before they escalate into critical faults, preventing network downtime. By enabling on-the-spot assessment, this feature improves overall efficiency and allows field technicians to make confident decisions without waiting for lab verification.
Fusion splicers equipped with data logging and trace recording functions offer substantial advantages for network maintenance. These features allow splices to be documented for audits, regulatory compliance, and long-term performance tracking. Stored data can be integrated into network management systems, facilitating analysis of trends, splice performance, and potential weak points over time. Consistent documentation also supports troubleshooting and ensures accountability in field operations, making it easier to verify splice quality and maintain network reliability across multiple projects.
Modern fusion splicers are designed with portability and field usability in mind. Compact, lightweight models are ideal for outdoor and OSP (Outside Plant) use, while long battery life ensures uninterrupted operation during extended deployments. Intuitive interfaces simplify complex procedures, allowing technicians to operate efficiently without excessive training. Durable construction reduces the risk of damage in harsh environments, and ergonomic design minimizes operator fatigue. Together, these features enhance overall productivity and reliability in demanding field conditions.
For rapid verification after splicing, fusion splicers provide immediate feedback, allowing technicians to confirm splice quality on the spot. This reduces installation downtime and accelerates field operations. Instant assessment helps identify errors before deployment, preventing costly rework. In situations where immediate decisions are required, splicer LID measurements offer an efficient alternative to waiting for full OTDR testing.
While fusion splicers provide quick local estimates, OTDR remains the gold standard for complete network certification. OTDR validates the entire fiber link, detects cumulative losses, and ensures regulatory compliance. Using splicer measurements in combination with OTDR enhances accuracy, enabling technicians to confirm that all splices meet industry standards. This dual approach balances efficiency with precision, particularly in long-haul or high-performance networks.
Combining fusion splicer pre-tests with OTDR verification streamlines troubleshooting workflows. Splicer readings allow technicians to identify immediate issues, while OTDR provides a detailed trace for comprehensive analysis. This dual-method approach reduces unnecessary testing, improves diagnostic accuracy, and ensures overall network reliability. Technicians can prioritize repairs and maintain consistent service quality, even in complex network configurations.
Splicer LID readings often save time and operational costs in the field, offering quick validation without the extensive setup required for OTDR testing. Conversely, OTDR ensures lab-grade accuracy for full network audits but demands more time and resources. By strategically balancing both tools, organizations optimize both budget and workflow efficiency. Leveraging each tool’s strengths reduces rework and improves overall project timelines.
Next-generation fusion splicers are increasingly adopting OTDR-like diagnostic features. Enhanced LID functions allow more accurate local loss estimations, bridging the gap between instant field checks and comprehensive fiber analysis. This hybrid approach simplifies testing workflows, reduces reliance on separate OTDR devices, and allows technicians to make faster, more informed decisions. Integration of these features is driving a shift toward more versatile and capable field tools.
AI-assisted trace interpretation and predictive maintenance tools are emerging in the fiber testing industry. Automated solutions reduce human error, improve measurement consistency, and allow proactive network management. By anticipating potential faults, technicians can schedule maintenance before service degradation occurs. Smart fiber testing accelerates decision-making, enhances network reliability, and enables operators to manage increasingly complex optical infrastructures efficiently.
Industry adoption of hybrid testing workflows is becoming standard practice. Combining splicer LID and OTDR measurements ensures repeatable, reliable results across multiple network deployments. Standardization enhances regulatory compliance, improves quality assurance, and guarantees consistent performance. Organizations that adopt these practices benefit from reduced rework, faster troubleshooting, and increased network uptime, meeting both technical and business objectives.
Fusion splicers provide fast splice quality checks but cannot replace OTDR. Combining both ensures precise fiber testing and efficient workflows. Shinho Optics Limited. offers advanced fusion splicers that deliver accurate LID readings, robust performance, and reliable documentation, enhancing network maintenance and operational efficiency.
A: Fusion splicers provide LID-based loss estimation but cannot fully replace OTDR. Use fusion splicer OTDR capabilities for quick field checks, then confirm results with OTDR for complete trace analysis.
A: Fusion splicer measures point splice loss, while OTDR provides full fiber trace. A Fusion Splicer vs OTDR comparison highlights that splicers are ideal for quick checks, and OTDR ensures full network certification.
A: Integrating OTDR-like features in fusion splicers allows real-time splice validation, reducing downtime and simplifying testing workflows, enhancing both speed and accuracy in fiber network maintenance.
A: Using both tools combines immediate splice feedback with detailed network diagnostics. Fusion splicer OTDR capabilities complement OTDR performance in fiber testing, ensuring accurate, reliable results.
A: Fusion splicers offer fast, portable splice loss estimation, data logging, and ease of use. Their Fusion splicer OTDR integration helps technicians detect issues early, improving workflow efficiency.
A: No. Fusion splicers provide point loss estimation but cannot generate full fiber traces. OTDR remains essential for certification, while fusion splicer OTDR capabilities support preliminary checks.
A: Built-in OTDR-like diagnostics in fusion splicers allow quick identification of splice issues, minimizing unnecessary OTDR measurements and accelerating fault detection in the field.
A: Fusion splicers reduce field testing time and allow instant splice verification. Combining fusion splicer OTDR capabilities with OTDR ensures budget optimization without sacrificing accuracy.
