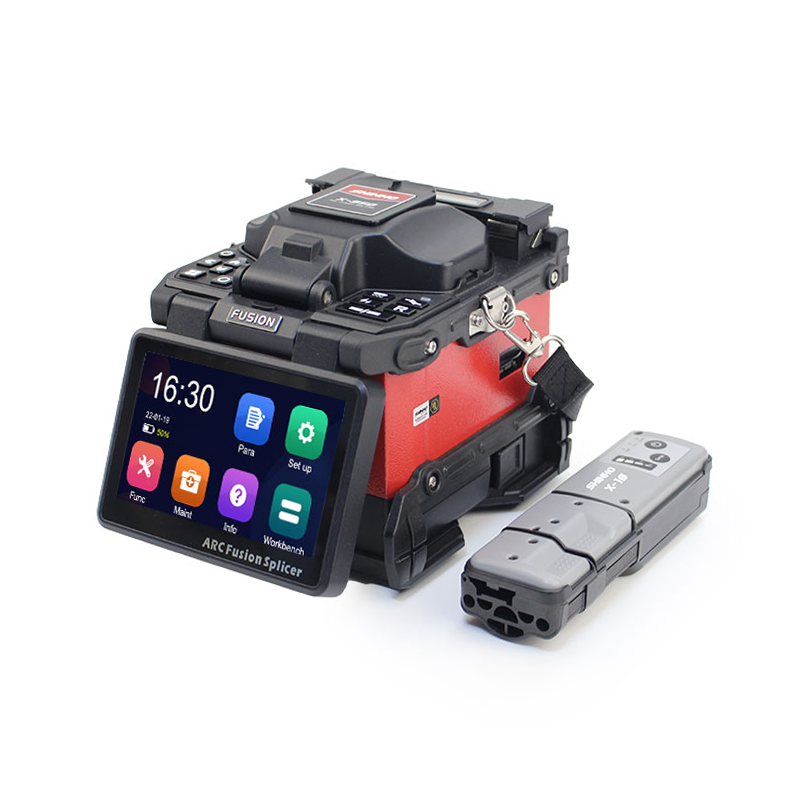

X-950 Ribbon fiber fusion splicer

Name: X-950 Ribbon fiber fusion splicer
Brand: SHINHO
Rating: 5.0 (63 reviews)

X-950 Ribbon fiber fusion splicer is with the latest accurate fiber alignment technology, it has very stable performance and low fusion loss, it is suitable for different fiber optical projects and various environmental conditions.

Intuitive interface
Ultra-High capacity battery
Fully motorized clamp alignment system
Advanced automatic clamp alignment system

Availability:

Quantity:



Inquiry Add to Basket Download

Model:
X-950
Brand:
SHINHO

Product Description

Product Description

banner1

Designed for Ribbon Fiber Splicing

◆ Applicable to 2-12 ribbon fiber splicing

◆ Durability tests reach IP52

◆ Accurate alignment, world standard fusion loss

◆ Removable metal holder, easy to operate

◆ 20s splicing time, heating 1-2/4-12 fiber ribbon 26s/40s

◆ Comes with high-quality X-18 ribbon fiber thermal stripper

◆ Ruggedized body, water-resistant, anti-dust, anti-shock

◆ Pluggable Li-battery, support separate charging

◆ Easy to maintain, easy to replace the electrodes

◆ USB port for software upgrading, records exporting

◆ Support 4000/100 groups fusion records/fusion images

◆ Comply with international standards like CE, RoHS, UKCA etc.

MORE INFO

Removable metal holder,

easy to operate

Inductive heater,

without fiber not heating

Anti-shock, water-proof

and dustproof

With multi-function thermal

stripper X-18

Automatic ARC calibration

stable splicing

Big robust carrying box

completed fiber accessories

Operating Condition

SPECIFICATIONS

Applicable Fiber	SM/MM/DS/NZDS etc.
Number Of Fiber	1, 2, 4, 6, 8, 10, 12
Coating Diameter	Ribbon: 250~400μm/Single: 250μm & 900μm
Typical Splice Loss	SM: 0.02dB; MM: 0.01dB; DS: 0.04dB; NZDS: 0.04dB
Return Loss	＞60dB
Cleaved Length	10~16mm
Splicing Program	40 modes
Operation Mode	Manual/ Auto
Auto-Heating	Available
Typical Splicing Time	20 seconds
Heating Time	1~2cores 26 seconds, 4~12cores 40 seconds
Fiber Magnification	25X
Viewing Display	Dual high sensitivity camera, 5.0" HD color LCD touch screen
Data Storage	4000 groups fusion records, 50 groups images
Loss Evaluation	Available
Tension Test	1.8～2.2N
Interface	GUI menu interface, easy for operation
Battery Capacity	Detachable 5200mAh Li-battery, typical 150 cycles splicing and heating
Power Supply	Adapter, input: AC100~240V (50/60Hz), output: DC11~13.5V
Electrode Life	More than 3000 ARC discharges, easy to replace
Terminal	USB 2.0 port, for software upgrading, records exporting
Operating Condition	Altitude: 0~5000m; Humidity: 0~95%; Temperature: -10°C~+50°C; Max wind: 15m/s
Dimension/Weight	155mm(L) × 144mm(W) × 155mm(H) (including rubber bumper)/2.2kg(with battery)

PACKAGE

Ribbon Fusion Splicer

Fiber Cleaver

Drop Cable Stripper

Fiber Stripper

Power Plug

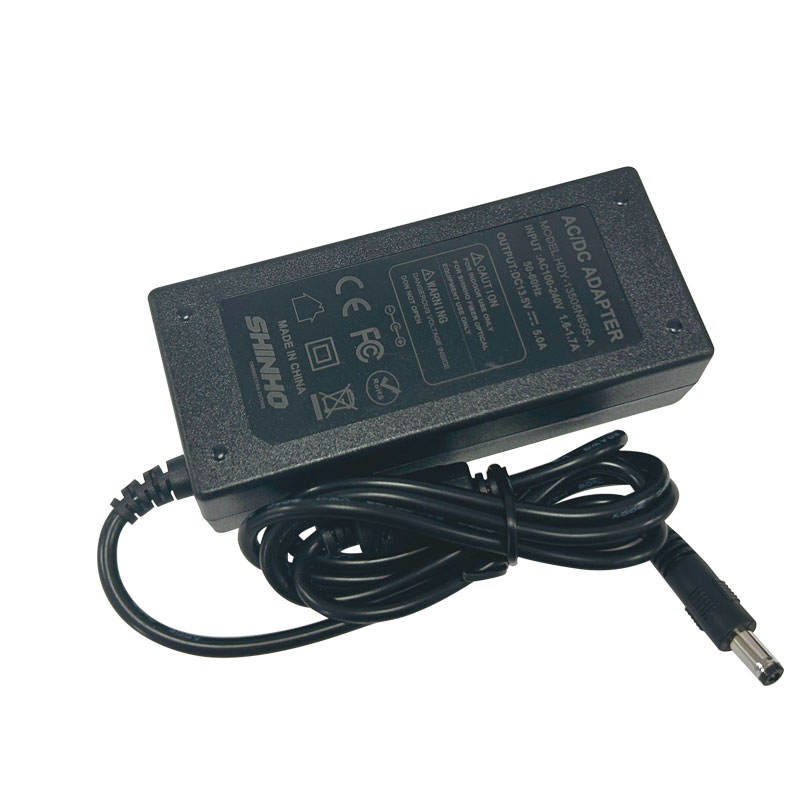

Power Adapter

Strap

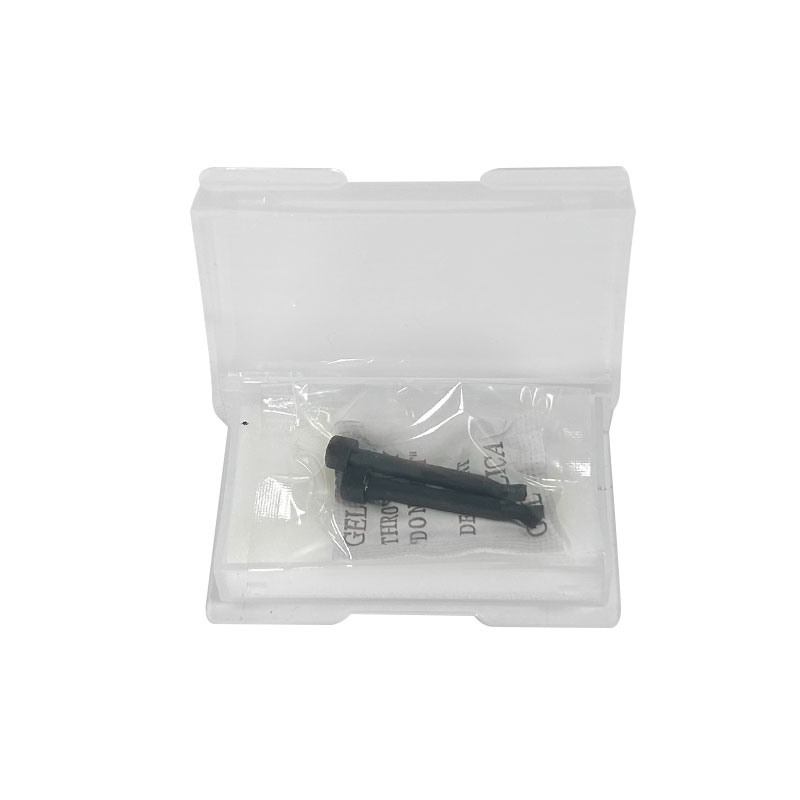

Spare Electrodes

User Manual

Cooling Tray

Cleaning Brush

Carrying Case

CUSTOMER PRAISE

banner3

FAQ

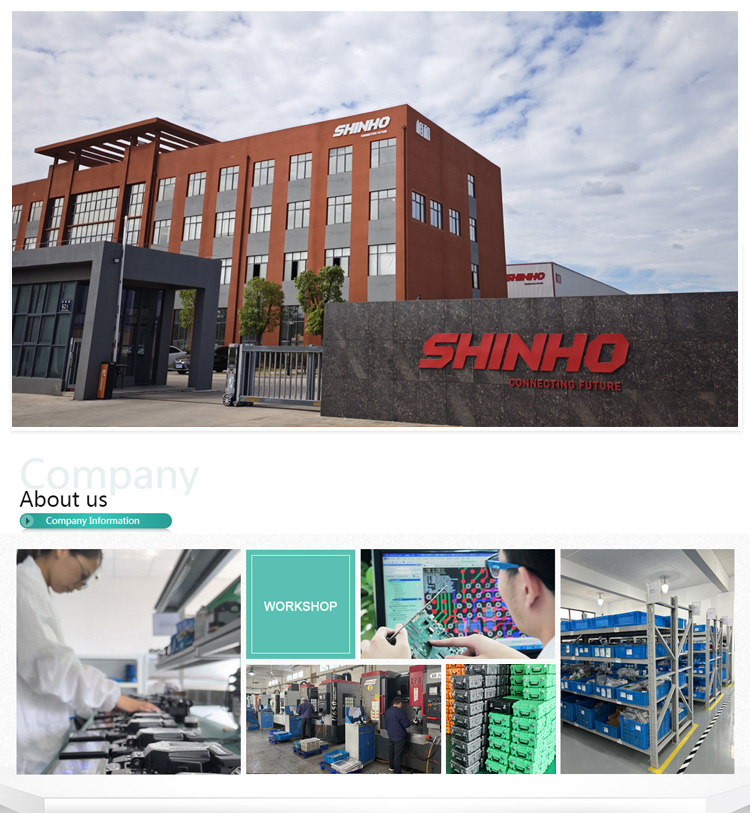

1. Why Choose Xianghe?

----Xianghe is founded in 2012 by a team of engineers with 20 year's experience in this industry. We focus on the manufacturing of fusion splicer and the quality since beginning.The software and hardware are all designed and implemented at our own plant. We have professional production line and staff who are making nice quality in short time.

banner

2. What Certificate you have?

-----CE,Rohs, and ISO.

fusion splicer ces

3. What is the warranty?

----- 3 Years from the date from you received the splicer.

4.Is there any discount for the splicer?

-----Yes, the price depends on the quantity, please contact us for details.

5. What should I do if I have a problem with the machine?

-----When you have problem, please share video or photo to us, we will guide you how to solve the problem. Usually most problem could be solved via remote guidance or software upgrading. We are experienced in this.

6. How to be your distributor?

-----We welcome customers to be our distributor. We will give you full support. Contact us if you are interested.
